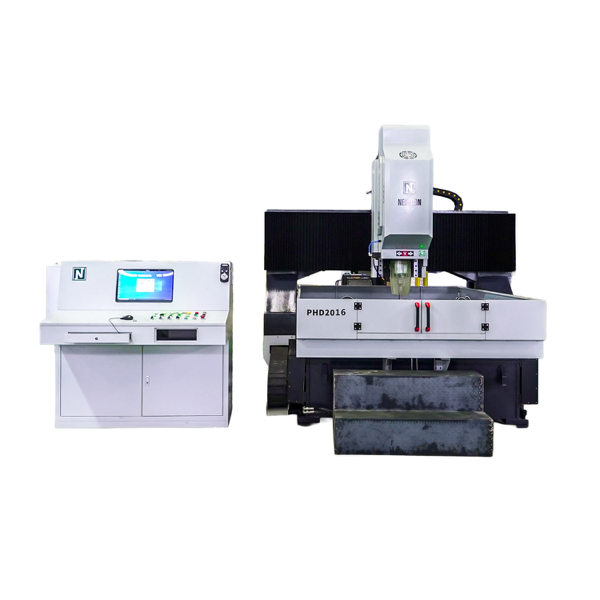

As a premier manufacturer and dedicated supplier of heavy-duty industrial machinery, we present the CNC High Speed Plate Drilling Machine Model PHD2016. Engineered specifically to tackle the most demanding metalworking projects, this equipment seamlessly bridges the gap between raw material processing and high-precision structural assembly. By integrating cutting-edge numerical control with robust mechanical architecture, this machine significantly reduces cycle times while ensuring flawless repeatability across large-scale production runs.
Engineered for high-speed drilling and light milling of heavy steel plates.
Accommodates stacked plates up to 100mm thick with a maximum workpiece size of 2000mm by 1600mm.
Features a highly rigid BT50 precision spindle compatible with both twist and carbide drills.
Equipped with 3 advanced CNC axes for exact gantry and spindle positioning.
Designed with a centralized lubrication system and dual cooling for extended operational lifespan.

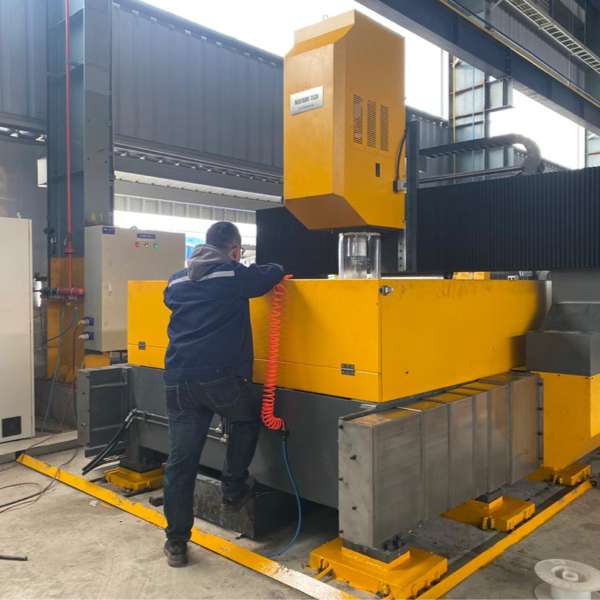

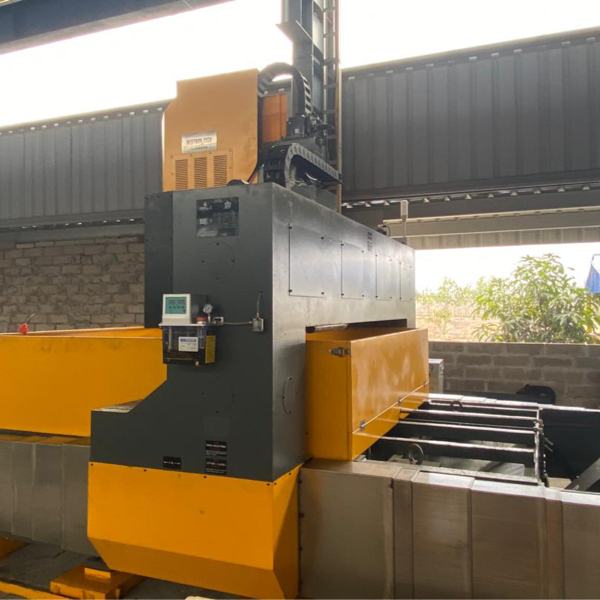

When you stand beside the CNC High Speed Plate Drilling Machine Model PHD2016, the first thing that commands your attention is the imposing, rock-solid presence of its heavy-duty machine bed and gantry. Forged and welded to eliminate microscopic vibrations, this reinforced steel structure provides an unshakeable foundation for high-precision metalworking. As the BT50 precision spindle engages, it emits a smooth, consistent, low-pitch hum—a distinct auditory testament to its exceptional rotational accuracy and internal rigidity. There is no rattling or hesitation; only the sound of sheer mechanical power ready to be unleashed.

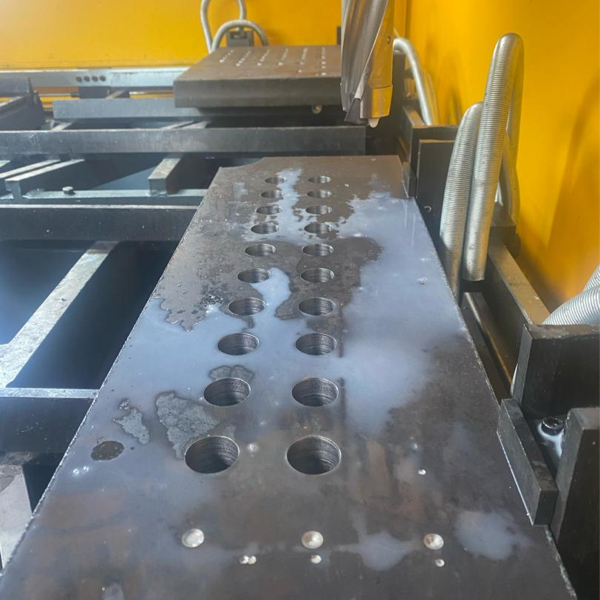

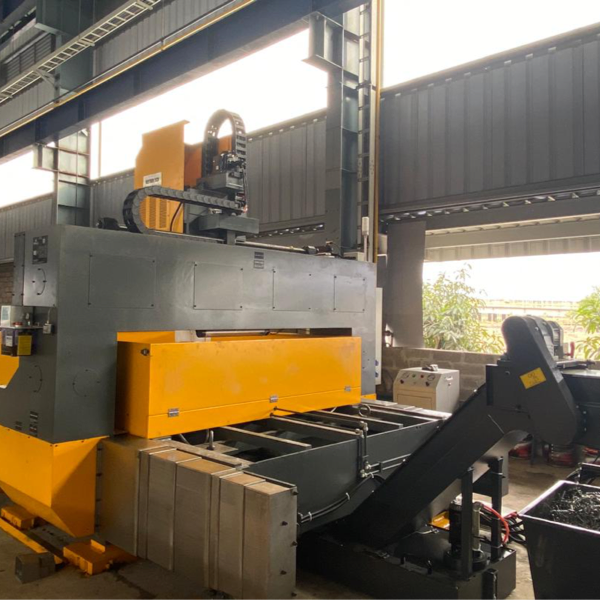

Watching the cutting tool slice through thick, stacked steel plates is a masterclass in industrial fluid dynamics and kinetic force. The carbide drill bit penetrates the dense metal with effortless grace, producing a continuous, satisfying curl of metal shavings that are instantly swept away by the automated chip removal system. The machined holes left behind are pristine, featuring clean, burr-free edges that gleam under the factory lights, requiring absolutely zero secondary finishing or deburring. The crisp scent of premium cutting fluid fills the air as the integrated internal and external cooling systems bathe the cutting zone, keeping the thermal dynamics perfectly balanced to prevent heat distortion and extend tool life.
Every single component of this machine, from the frictionless glide of the linear guides to the firm, reassuring grip of the hydraulic clamping system, works in perfect, synchronized harmony. This equipment does not merely drill holes; it accelerates your entire production workflow. By eliminating the costly bottlenecks, manual setup errors, and sluggish feed rates associated with outdated drilling methods, it transforms raw steel into high-value structural components with relentless efficiency and uncompromising precision.
To maintain a competitive edge in heavy industry, your facility requires equipment that minimizes downtime and maximizes output. The PHD2016 is engineered with distinct technological advantages that directly address the most pressing challenges in structural steel machining.
Precision 3-Axis CNC Control: The machine operates on three fully synchronized CNC axes. The X-axis handles precise gantry positioning, the Y-axis controls the lateral movement of the drilling spindle, and the Z-axis dictates the exact feed depth. This triad ensures absolute dimensional accuracy across massive workpieces.

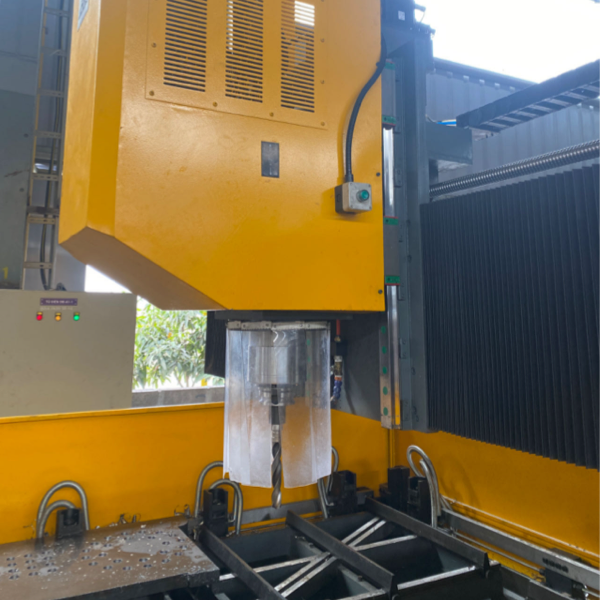

Versatile Tool Compatibility: Outfitted with a BT50 taper hole, the spindle makes tool changes remarkably swift and straightforward. It effortlessly accommodates both traditional twist drills and high-performance carbide drill bits, giving operators the flexibility to adapt to varying material hardness and hole specifications.
Dual-Action Cooling Architecture: Heat is the enemy of tool longevity. This machine deploys both internal cooling (through-spindle coolant) and external cooling mechanisms. This dual approach flushes chips away instantly while keeping the cutting edge at an optimal temperature, preventing thermal deformation of the workpiece.
Intelligent Material Clamping: Securing heavy, stacked plates is handled by 12 sets of hydraulic clamps delivering 7.5KN of force. Operated intuitively via a foot switch, this system drastically reduces manual setup time while ensuring the material remains perfectly immobilized during high-torque drilling operations.
Selecting the right equipment provider goes beyond comparing technical specifications; it requires trusting a partner who understands the rigorous demands of industrial-scale production. We have engineered our entire business model around ensuring your operational success.
Comprehensive Documentation & Training: We do not just drop off a machine. We provide highly detailed operation guides covering mechanical, electrical, and hydraulic systems. Following successful installation and commissioning, our engineers conduct thorough, on-site training for your operators to ensure they can maximize the machine's potential safely.
Unwavering Reliability: By exclusively utilizing world-famous brands for our linear guides, servo motors, and hydraulic components, we drastically reduce the likelihood of component failure, ensuring your production line keeps moving.
Lifetime Partnership: While our standard warranty covers the first 12 months with free spare parts, our commitment is permanent. Paid spares and elite technical consultations are available to you for the entire lifespan of the equipment.
