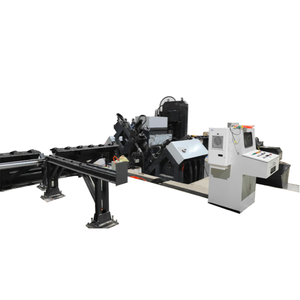

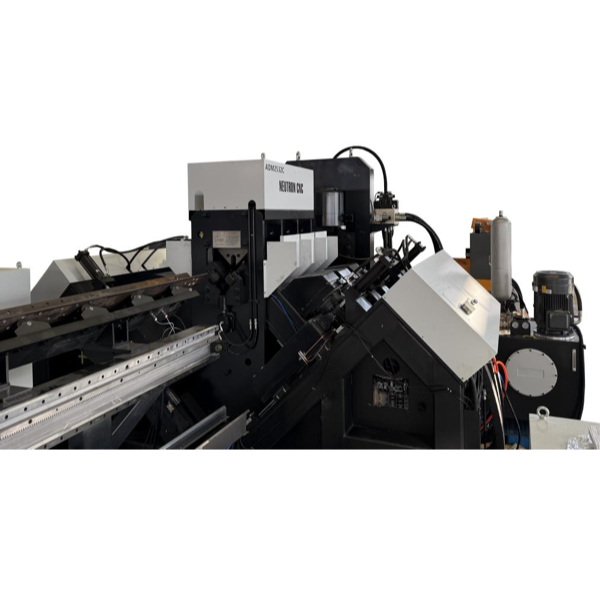

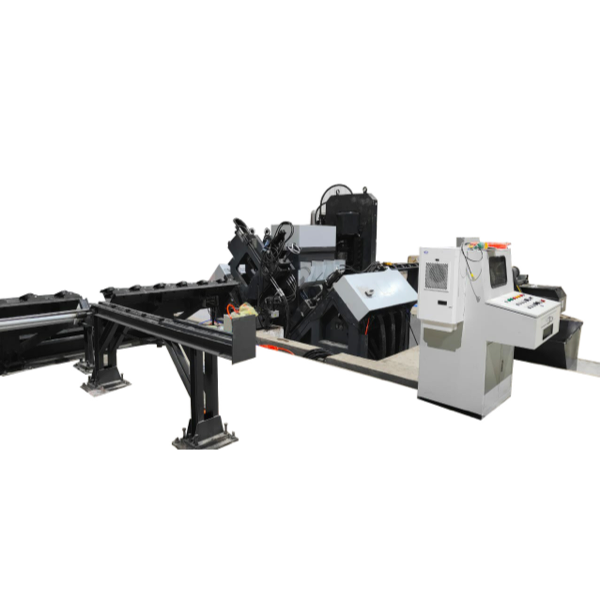

As a premier manufacturer and trusted supplier of heavy-duty structural steel processing equipment, we proudly present the High Speed CNC Angle Drilling Machine ADM3635. Engineered for industrial-scale fabrication, this system seamlessly integrates marking, drilling, and cutting into one highly automated workflow, drastically reducing manual handling and cycle times.
Processes massive angle steel sizes from 90×90×6 mm up to 360×360×35 mm.
Features a 9-axis CNC system for pinpoint accuracy and automated material handling.
Achieves a maximum spindle rotation speed of 6000 r/min for rapid, clean penetration.
Engineered specifically to elevate productivity in power transmission and heavy infrastructure projects.
The High Speed CNC Angle Drilling Machine ADM3635 is a masterclass in structural steel processing, designed to transform raw, heavy-duty steel angles into precision-engineered components with remarkable fluidity. When observing this robust machine in action, the steady, powerful hum of the 6000 r/min carbide drills and the rhythmic, precise movements of the servo-driven CNC feeding carriage convey a profound sense of unstoppable industrial capability. The heavy-duty, vibration-dampening steel chassis absorbs kinetic energy, ensuring that even during the high-velocity drilling of 35mm thick steel, the operation remains exceptionally smooth and grounded. This uncompromising stability translates directly into flawless hole quality, eliminating jagged edges, minimizing material stress, and virtually eradicating the need for secondary deburring.
By integrating marking, drilling, and cutting into a single, continuous automated workflow, this machine drastically condenses your production timeline. The advanced mist cooling system emits a fine, precise spray that carries the sharp, clean scent of industrial lubricant, keeping the BT40 spindle and carbide tools at optimal operating temperatures. This not only extends tool life but also leaves a clean, polished finish on the metal's surface. Every component, from the high-rigidity closed marking unit to the waste-free double-blade shearing mechanism, is meticulously crafted to maximize material yield and throughput. For facility managers and production engineers aiming to scale up operations without compromising on dimensional accuracy, the ADM3635 offers a seamless blend of brute mechanical force and sophisticated digital control, ultimately driving down operational costs and elevating the structural integrity of your finished steel frameworks.

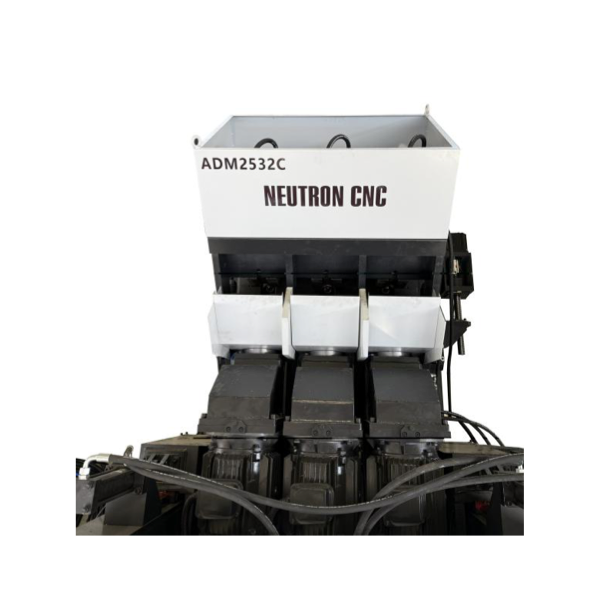

Each side of the drilling unit is equipped with three independent
drilling spindles, allowing for the simultaneous installation of three different drill diameters. This sophisticated setup eliminates the need for manual tool changes during complex fabrication sequences.
CNC-controlled synchronization allows all three heads to move together to adjust the drilling stadia instantly.

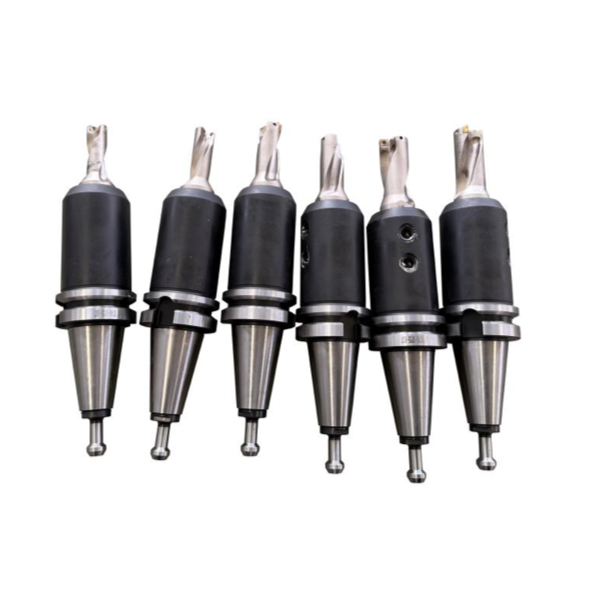

Utilizes high-precision BT40 spindles paired with robust carbide drills for superior penetration.
Drastically reduces cycle times for multi-hole patterns on extra-large angle steel.

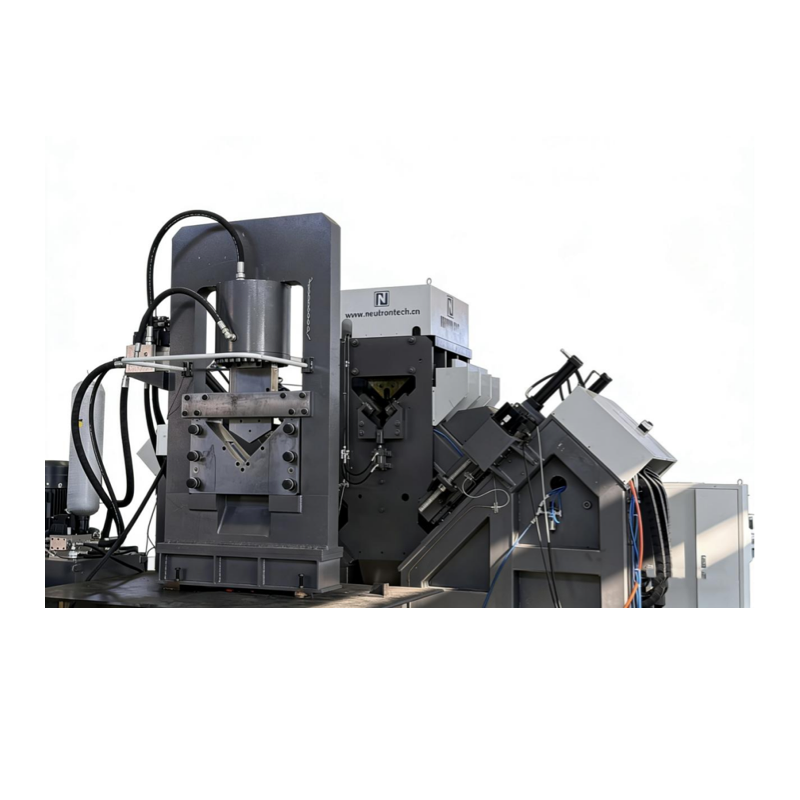

The optional cutting unit redefines material efficiency in heavy steel processing. By employing an advanced double-blade shearing mechanism, the machine ensures that every cut is clean, precise, and entirely devoid of material waste.
Delivers a massive 2250KN of nominal cutting force for double-blade operations.
Leaves a remarkably neat, mirror-like cutting surface that requires no secondary grinding.
Directly improves material yield, significantly lowering raw steel procurement costs over time.
The beating heart of the ADM3635 is its highly responsive hydraulic system, meticulously synchronized with a 9-axis CNC controller. This synergy guarantees that clamping, pressing, and tool releasing are executed with fluid, unwavering force.
Ensures hydraulic balance of the drilling head slipway, preventing micro-deviations during operation.
Servo-driven CNC feeding carriage achieves an impressive 40 m/min feeding speed with absolute positioning accuracy.
Reduces equipment operation requirements through an intuitive, commercially available PC interface.
As a dedicated manufacturer and supplier deeply rooted in the heavy machinery sector, we do more than just assemble parts; we engineer comprehensive solutions that directly address the pain points of modern steel fabrication. Our direct oversight of the manufacturing process ensures that every machine meets our exacting standards before it reaches your facility.
Decades of specialized experience in CNC structural steel processing equipment.
Rigorous in-house testing protocols that simulate extreme factory conditions.
A global footprint with a proven track record of elevating production capabilities for top-tier infrastructure contractors.
Investing in the ADM3635 is a strategic move to future-proof your fabrication capabilities. By combining ultra-high-speed processing with zero-waste cutting technology, we help you achieve a faster return on investment while maintaining the agility to take on increasingly complex, large-scale structural projects.
Continuous software updates and permanent technical guidance keep your machine at the cutting edge.
Readily available paid spare parts post-warranty ensure your production line never experiences prolonged downtime.
Customizable layout configurations confirmed by the user to perfectly integrate into your existing factory floor.
