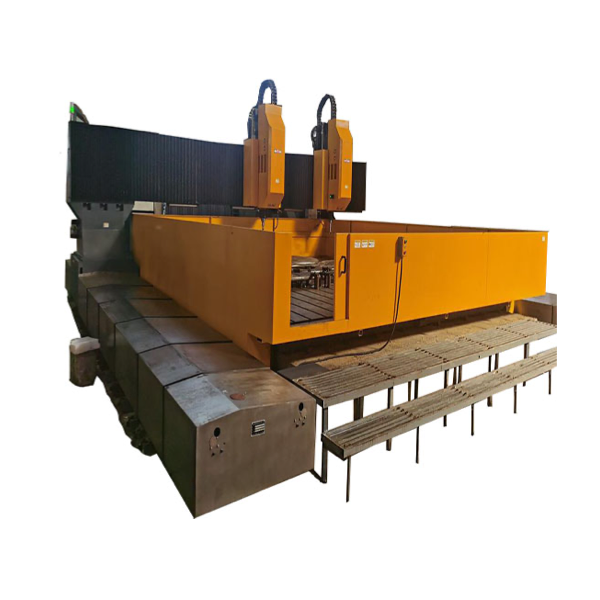

As a premier industrial machinery manufacturer and global equipment supplier, we proudly present the CNC High Speed Plate Drilling Machine Model PHD5050-2. Engineered specifically for heavy-duty metal fabrication, this robust system delivers uncompromising precision and continuous operational reliability for large-scale production facilities.
Engineered for high-capacity, continuous industrial production.
Advanced CNC automation ensures flawless geometric precision.
Manufactured by a trusted, internationally certified equipment supplier.
Step onto the production floor, and the commanding presence of the CNC High Speed Plate Drilling Machine Model PHD5050-2 immediately communicates industrial strength and uncompromising precision. Crafted from massive, stress-relieved cast iron and heavy-duty steel, the machine bed presents a sleek, industrial-grade finish that resists the harsh, abrasive conditions of continuous metalworking. When the 15 kW heavy-load AC servo motor roars to life, it produces a smooth, resonant hum rather than a jarring mechanical grind, signaling the seamless synchronization of its premium Taiwan precision spindle. As the cutting tool meets thick steel plates, the operation feels incredibly stable, eliminating the aggressive vibrations typically associated with deep-hole drilling. The distinct scent of high-pressure cooling fluid cleanly washing away metallic shavings confirms that the internal mechanisms are operating at peak thermal efficiency. By integrating this powerhouse into your fabrication line, you instantly eliminate the bottlenecks of manual measurement and slow tool changes. Your operators will experience a streamlined workflow where complex hole patterns are executed with absolute geometric accuracy, drastically reducing material waste and elevating the structural integrity of every component you produce. This is not merely a drilling apparatus; it is a transformative asset designed to accelerate your production cycles and secure your position at the forefront of heavy industry manufacturing.
Maximizing operational uptime and ensuring flawless execution are the core philosophies behind this advanced drilling equipment. Every component has been meticulously selected to provide your production facility with a competitive edge, transforming labor-intensive processes into a highly automated, efficient workflow.
Uninterrupted Workflow Automation: The integration of an automatic centralized lubricating system ensures that all critical moving parts receive precise lubrication without requiring manual intervention, significantly reducing maintenance downtime.
Exceptional Positional Accuracy: Driven by AC servo motors paired with precise ballscrews of a large pitch, the gantry moves with fluid precision, ensuring that every hole is positioned exactly according to your digital blueprints.
Rapid Tool Adaptation: The hydraulic cylinder cutter loosening mechanism allows operators to swap heavy-duty shanks effortlessly, keeping the production line moving even when transitioning between complex hole profiles.
Superior Thermal Management: Dual-action cooling pumps protect both the cutting tools and the workpiece from heat distortion, ensuring clean, burr-free edges that require zero secondary finishing.
The foundation of any high-performance fabrication process lies in the unyielding stability of the equipment. This machine is engineered to absorb and dissipate the immense kinetic forces generated during heavy-duty metal penetration, safeguarding your investment and your product quality.
Massive Gantry Framework: The gantry-style movable structure provides a rigid overhead bridge, eliminating deflection even when applying maximum downward force on thick steel plates.
Heavy-Load Roller Guides: Equipped with premium linear roller guide pairs on both sides of the bed, ensuring smooth, friction-free longitudinal movement while supporting massive workpiece weights.
Synchronized Dual-Drive System: The bilateral synchronous drive, powered by robust AC servo motors, prevents any crabbing or misalignment of the gantry during rapid traverses across the expansive 5000 x 5000 mm working area.
Vibration Dampening: The dense material composition of the machine bed acts as a natural shock absorber, protecting the delicate carbide cutting edges of your drill bits from micro-fractures.
At the heart of the operation beats a high-torque spindle designed to power through the toughest alloys with relentless consistency. The engineering focus here is on maximizing material removal rates while minimizing operator fatigue during complex machining cycles.
Taiwan Precision BT50 Spindle: Renowned for its exceptional runout accuracy, this vertical CNC feeding ram-type spindle guarantees perfectly cylindrical holes, crucial for high-stress structural connections.
Heavy-Duty Power Delivery: The 15 kW conversion motor utilizes a synchronous belt drive to deliver continuous, non-slip torque, maintaining optimal RPMs (30 - 3000 r/min) even when drilling large Φ80 mm diameters.
Disk Spring Broach Mechanism: This automatic tool-holding design secures the cutter with immense clamping force, preventing tool slippage during aggressive plunge cuts.
Hydraulic Tool Release: By utilizing a hydraulic cylinder to loosen the cutter, operators can execute tool changes with the push of a button, replacing strenuous manual wrenching with elegant, fluid automation.
Managing the massive volume of metallic waste and extreme heat generated during high-speed drilling is critical for continuous operation. This system transforms hazardous debris management into a clean, hands-free process, protecting both your personnel and your machinery.
Dual-Pressure Coolant Delivery: Features a high-pressure inner-cooling pump that blasts fluid directly through the center of the drill bit, clearing debris from deep holes, complemented by a low-pressure outer-cooling pump for surface temperature control.
Automated Chip Evacuation: The chain-plate type automatic chip-conveyor silently and continuously drags razor-sharp metallic shavings away from the cutting zone, depositing them safely into a dedicated collection trolley.
Advanced Fluid Filtration: A sophisticated paper filter system continuously purifies the cooling fluid, trapping microscopic metal particles to prevent pump degradation and ensure only clean coolant reaches the cutting edge.
Pristine Work Environment: By containing and managing chips and fluids automatically, the machine maintains a clean, hazard-free shop floor, significantly improving workplace safety and environmental compliance.
Bridging the gap between digital design and physical execution, the intelligent control architecture of this machine eliminates the costly errors associated with manual data entry and complex programming, putting total control at your operator's fingertips.
Seamless Software Integration: Fully compatible with industry-standard detailing software such as AutoCAD and TEKLA, allowing direct importation of complex structural blueprints without manual translation.
Automated Program Generation: The sophisticated onboard computer instantly converts imported digital models into optimized machining pathways, calculating the most efficient routing to minimize non-cutting travel time.
Pre-Drill Hole Preview: Operators can visually verify all hole coordinates on the high-resolution interface before the spindle ever powers on, providing a crucial failsafe against expensive material spoilage.
Intuitive Operator Interface: Designed with a logical, user-friendly dashboard that drastically reduces the learning curve, enabling your workforce to achieve master-level production output in a fraction of the usual training time.
Investing in heavy machinery requires absolute confidence in both the product's longevity and the manufacturer's support infrastructure. We provide a comprehensive safety net that ensures your production line never experiences prolonged interruptions.
Internationally Certified Manufacturing: Every machine is built under the strict guidelines of ISO9001:2015 for quality management, ISO14001:2015 for environmental standards, and ISO45001:2018 for occupational health and safety.
Comprehensive On-Site Commissioning: Our expert engineers travel to your facility to oversee the complete installation process, ensuring the equipment is perfectly calibrated to your specific operational environment.
Hands-On Operator Training: Following installation, we conduct intensive, practical training sessions with your staff, covering mechanical, electrical, and hydraulic operations to guarantee immediate productivity.
Global Support Network: Backed by a robust 12-month warranty, we offer 24/7 remote diagnostics via video call, alongside access to local international service engineers who can provide rapid on-site intervention when necessary.
Selecting the right industrial equipment supplier is just as critical as the machinery itself. We pride ourselves on forging long-term partnerships with our clients, delivering not just heavy-duty hardware, but comprehensive manufacturing solutions that drive your operational success forward.
Decades of Engineering Excellence: Our deep-rooted expertise in CNC machinery design ensures that every product we deliver is optimized for maximum durability and cutting-edge performance.
Uncompromising Quality Assurance: From raw material inspection to final laser calibration, our rigorous testing protocols guarantee that your machine will perform flawlessly straight out of the crate.
Rapid Global Logistics: We have streamlined our supply chain and shipping processes to ensure your heavy equipment arrives safely and on schedule, minimizing your facility's downtime.
Permanent Technical Backing: Our commitment to your success extends far beyond the initial procurement, offering lifetime technical support and a readily available inventory of precision spare parts.
