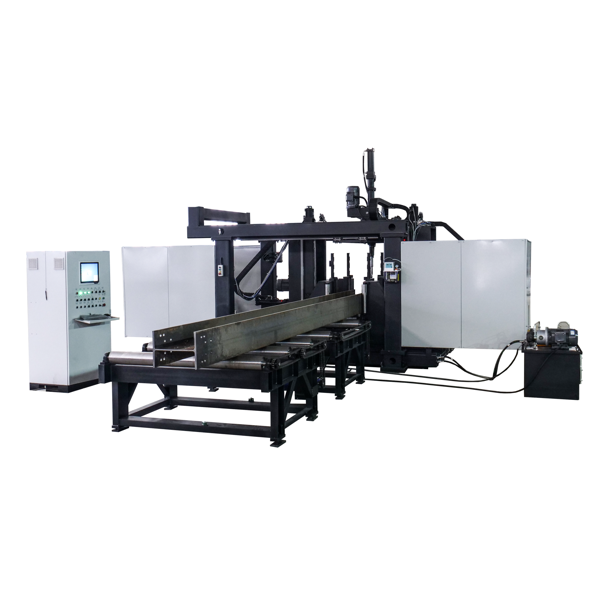

As a leading manufacturer and supplier of heavy-duty industrial equipment, we present the CNC Beam Drilling Machine Model SWZ1250C. Engineered for structural steel fabrication, this advanced machinery streamlines complex drilling tasks with unparalleled precision. Designed for large-scale production facilities, it offers robust performance and exceptional reliability to elevate your daily output.
Supports massive H-beams up to 1250x600 mm
Three simultaneous drilling spindles for rapid processing
High-efficiency automated feeding and clamping system
Advanced aerosol cooling technology for extended tool life
The CNC Beam Drilling Machine Model SWZ1250C represents the pinnacle of structural steel processing technology, engineered specifically to transform raw steel profiles into perfectly machined components ready for immediate assembly. When standing next to this massive structural marvel, the sheer industrial heft is palpable, characterized by the smooth, quiet hum of its premium servo motors and the reassuringly solid clunk of its hydraulic clamping mechanisms securing multi-ton steel beams. The meticulously welded and thermally aged steel frame exudes a rugged industrial aesthetic, finished in a durable, corrosion-resistant coating that feels cool and unyielding to the touch. By automating the most labor-intensive aspects of beam drilling, this machinery dramatically slashes production bottlenecks.
Facilities utilizing this equipment experience a profound shift in operational rhythm, moving away from manual measuring and single-spindle drilling toward a seamless, continuous flow of high-volume output. The integration of advanced atomizing cooling systems not only ensures the air remains free of heavy coolant mists—leaving a clean, crisp metallic scent in the workspace—but also drastically extends the lifespan of cutting tools. Ultimately, this machine empowers large-scale fabricators to take on more complex, high-margin projects with absolute confidence in their delivery timelines and dimensional accuracy, transforming raw potential into tangible structural excellence.
Maximizing workshop output requires machinery that does not just perform, but excels under rigorous daily demands. This beam drilling center is meticulously crafted to deliver uncompromised precision while eliminating the common friction points found in traditional steel fabrication workflows. By integrating cutting-edge motion control with heavy-duty mechanical engineering, it provides a transformative upgrade to your production line.

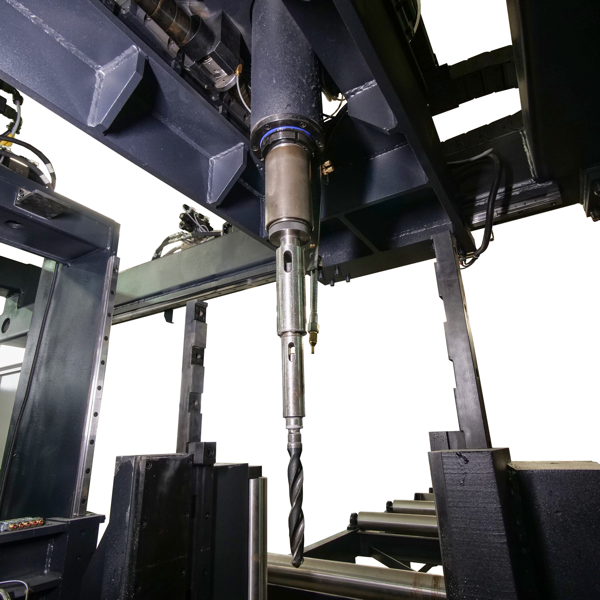

Triple Spindle Synchronization: Three independent drilling heads operate simultaneously on three distinct faces of the H-beam, drastically reducing cycle times compared to sequential drilling methods.
Versatile Feeding Mechanisms: Choose between a robust power roller drive or a highly precise CNC carriage feeding system, tailoring the material handling process to your specific facility layout and workflow preferences.
Dynamic Hole Group Processing: Within a 500mm range, holes can be rapidly drilled by feeding the workpiece once and automatically repositioning the spindle, ensuring flawless alignment and minimizing material movement.

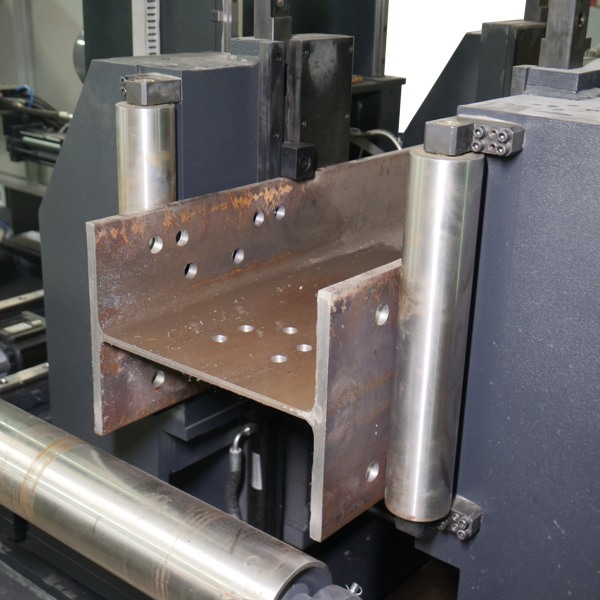

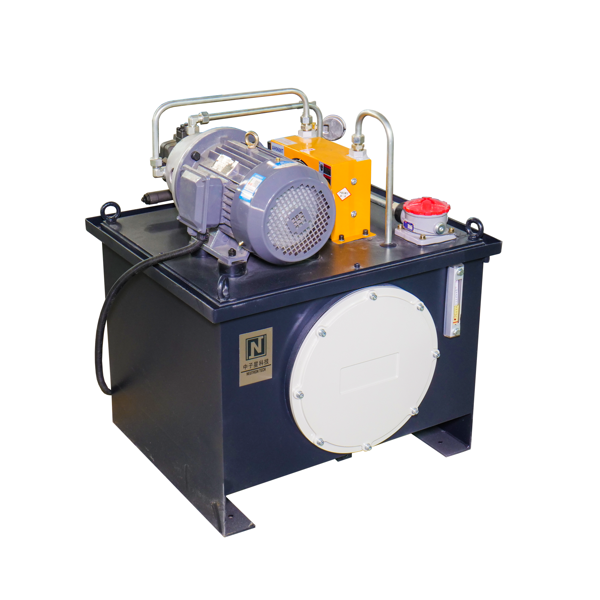

Hydraulic Mastery: Workpiece clamping, lifting, and side-pushing are entirely governed by a premium hydraulic system, delivering a smooth, unyielding grip that prevents even the slightest material shift during high-torque operations.
Intuitive Commercial PC Interface: The control system replaces complex, archaic panels with a user-friendly commercial computer interface, allowing operators to program and monitor tasks with minimal training, thereby reducing human error.
Achieving flawless execution on massive steel profiles requires a perfect synergy of brute strength and microscopic accuracy. This equipment is engineered to handle the most demanding specifications with absolute ease, ensuring your fabrication floor maintains peak throughput without sacrificing dimensional integrity.
Heavy-Duty Profiling: Capable of effortlessly processing massive H-beams up to 1250×600 mm, making it the ultimate solution for heavy structural frameworks and large-scale infrastructure projects.

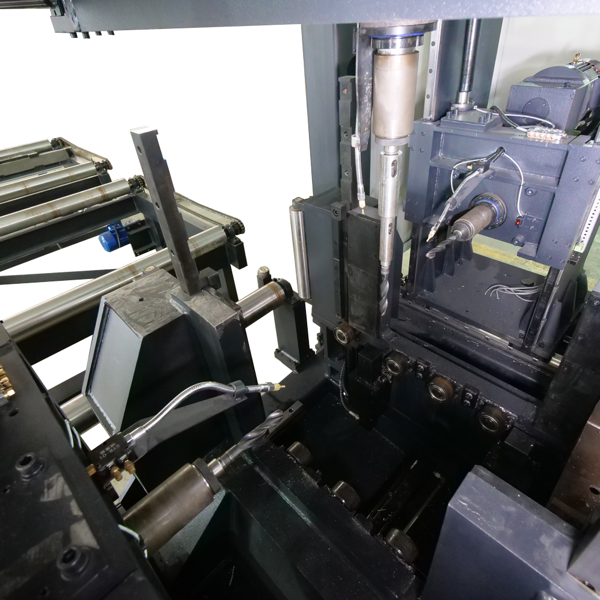

Simultaneous Multi-Face Drilling: Equipped with three independent CNC spindles that attack the workpiece from three sides at once, fundamentally accelerating the production timeline and reducing labor costs.
Single-Pass Hole Grouping: Combined with an intelligent feeding system, it completes complex hole clusters in a single material pass, eliminating redundant handling and boosting batch production efficiency.
7-Axis CNC Mastery: Utilizes a sophisticated 7-axis control system paired with full/half closed-loop technology to achieve an astonishing positioning accuracy of ≤ 1mm over a 10-meter span.
Automated Profile Compensation: Intelligently detects and automatically compensates for irregular material contours, ensuring perfectly aligned holes even on imperfect raw steel directly from the mill.
Graphical Programming Interface: The commercial PC setup offers a highly visual, graphical display that simplifies complex programming, significantly lowering the technical barrier for floor operators and reducing training time.
The longevity and reliability of industrial machinery are dictated by the quality of its foundational build and the pedigree of its internal components. We have spared no expense in sourcing the finest materials and globally recognized parts to construct a machine that thrives in the harshest manufacturing environments.
Global Premium Parts: The control unit, hydraulic valves, and servo motors are exclusively sourced from internationally renowned brands, guaranteeing exceptional durability under high-frequency, heavy-load conditions.
Unwavering Reliability: By utilizing top-tier imported components, the machine minimizes unexpected downtime, ensuring your production schedules remain strictly on track and delivery commitments are met.
Optimized Power Transmission: The integration of high-end linear guideways and servo drives translates to whisper-quiet, ultra-smooth mechanical movements that enhance overall cutting precision.
Thermally Aged Steel Frame: The main host frame is constructed from premium welded steel that undergoes rigorous thermal aging to completely eliminate internal stresses and prevent long-term deformation.
Vibration-Free Operation: The immense rigidity of the treated frame, combined with precision linear rolling guides, guarantees a perfectly stable drilling process devoid of tool-shattering vibrations.
Eco-Friendly Aerosol Cooling: A standard advanced aerosol cooling and lubrication system drastically reduces fluid consumption while providing superior thermal protection for the drill bits, aligning perfectly with modern cost-reduction and environmental standards.
Selecting the right manufacturing partner is just as critical as choosing the right equipment. As a dedicated supplier and manufacturer with a deep-rooted commitment to industrial excellence, we focus on delivering holistic solutions that drive your operational success. Our approach goes far beyond simply delivering machinery; we aim to elevate your entire production capability.
Uncompromising Quality Control: Every single machine undergoes rigorous, multi-stage testing before leaving our facility, ensuring it meets the exact tolerances required for heavy-duty structural fabrication.
End-to-End Project Management: From the initial technical consultation to final on-site commissioning, our experienced project managers ensure a seamless integration of the equipment into your existing workflow.
Continuous Innovation: We heavily invest in research and development, constantly refining our CNC systems and mechanical designs to keep our clients ahead of the technological curve in steel processing.
Robust Supply Chain Stability: Our strong relationships with global component brands mean we can guarantee consistent build quality and rapid availability of critical spare parts, minimizing any potential operational disruptions.
Client-Centric Engineering: We understand that no two facilities are identical. Our engineering team excels at customizing feeding lengths, software interfaces, and clamping mechanisms to perfectly align with your unique production demands.
