Engineered for heavy-duty structural fabrication, the CNC High Speed Drilling Machine for Beams BHD1206-3 with ATC delivers uncompromising precision for large-scale industrial operations. As a premier solution from a trusted global manufacturer, this equipment streamlines high-volume production lines and maximizes factory output.
High-velocity carbide drilling capabilities reaching up to 3000rpm
Automated Tool Changer (ATC) for seamless, uninterrupted transitions
Robust 10-ton carriage feeding capacity for massive structural components
The ultimate heavy-machinery upgrade for industrial steel fabricators and global suppliers

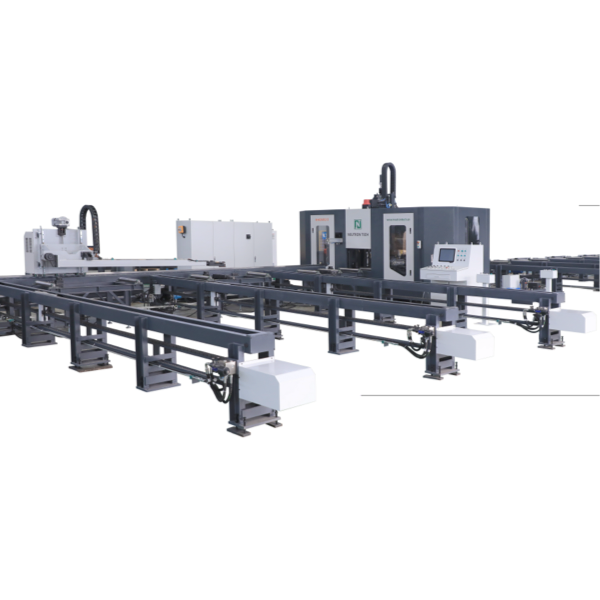

The CNC High Speed Drilling Machine for Beams BHD1206-3 with ATC represents the absolute pinnacle of structural steel fabrication technology. When you stand beside this massive 8000-kilogram powerhouse, the quiet, consistent hum of its premium servo motors and the rigid, unyielding stability of its hydraulic clamping system immediately convey industrial-grade reliability. Designed to transform raw, heavy steel into precision-engineered structural components, it effortlessly slices through solid metal, producing clean, burr-free holes with a satisfying, rhythmic consistency that defines top-tier manufacturing.
Every single aspect of this formidable machine is meticulously crafted to eliminate operational bottlenecks and elevate your facility's daily throughput. The integration of an advanced commercial PC control system means your operators will spend significantly less time deciphering complex interfaces and more time executing high-yield production runs. By fully automating the most labor-intensive aspects of beam processing—from the swift 20-meter-per-minute carriage feeding to the seamless, instant tool changes—this equipment fundamentally shifts your factory's output potential. The resulting workflow is not just faster; it is remarkably smooth, dramatically reducing the deafening clatter and chaotic material handling typically associated with heavy steel fabrication. Your facility will experience a noticeable, immediate upgrade in both production speed and floor-level safety, ensuring that every stringent project deadline is met with absolute confidence.
Elevate your structural fabrication capabilities with a machine engineered to deliver consistent, high-tolerance results. The BHD1206-3 is packed with intelligent features designed to optimize floor space, drastically reduce manual labor, and maximize your operational efficiency.

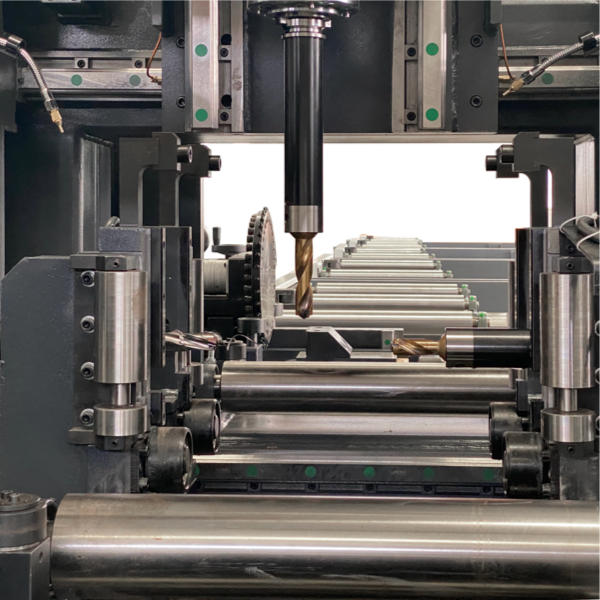

Triple Spindle Architecture: Three independent 11KW spindles operate simultaneously, drastically cutting down cycle times for complex, multi-dimensional hole patterns.
Hydraulic Clamping Mastery: Longitudinal lifting and lateral push clamping secure heavy beams with unyielding force, eliminating micro-vibrations and ensuring pinpoint accuracy.
Intelligent Chip Management: A heavy-duty chain-type chip conveyor automatically clears metallic debris from the cutting zone, maintaining a pristine workspace and preventing mechanical jamming.

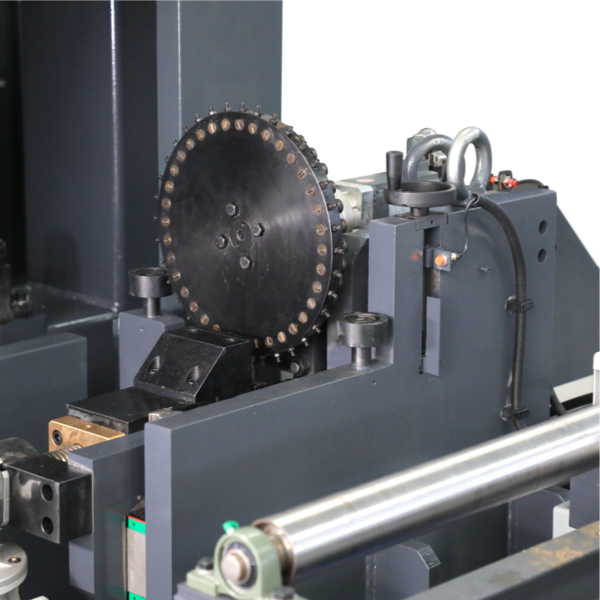

Optional Disk Marking System: Integrate a servo-positioned hydraulic marking machine capable of rapidly stamping 36 different characters, ensuring flawless traceability for every structural component.
In the highly competitive landscape of heavy steel fabrication, output volume is the ultimate metric of operational success. This advanced drilling center is meticulously engineered to address the most demanding production quotas, turning weeks of manual drilling into mere days of automated processing.
High-Velocity Penetration: Utilizing premium cemented carbide drill bits, the spindles achieve blistering rotational speeds up to 3000rpm, slicing through thick steel webs with effortless precision.

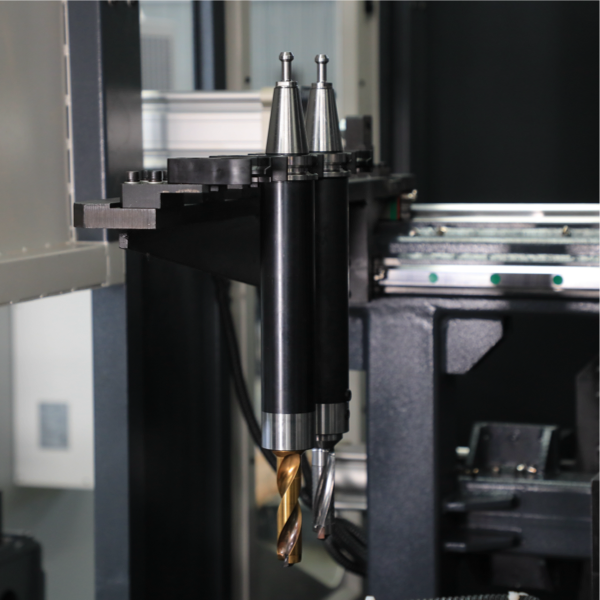

Automated Tool Changer (ATC): Eliminate the costly downtime associated with manual tool swaps. The ATC system seamlessly transitions between different drill diameters, keeping the machine fully engaged and productive.

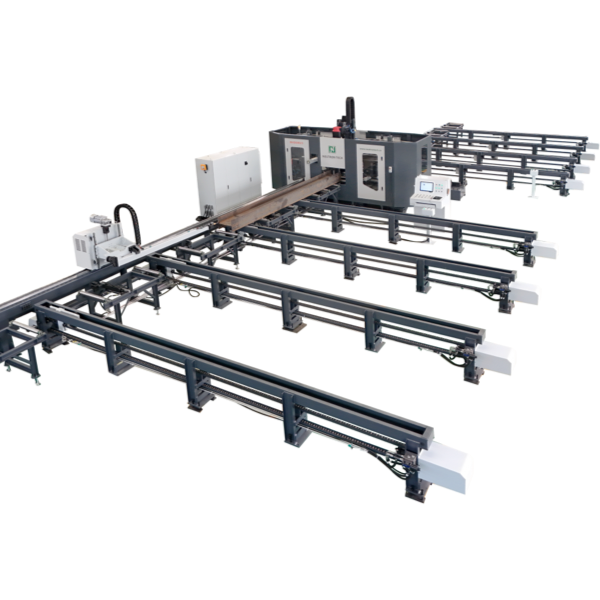

Rapid Material Transport: The CNC carriage feeding mechanism propels massive steel beams at speeds up to 20 meters per minute, drastically reducing the idle transit time between drilling cycles.
When constructing high-rise frameworks or expansive bridge girders, a fraction of a millimeter can compromise the entire assembly. This machine guarantees the exact alignment of complex hole groups, ensuring flawless on-site bolting and absolute structural integrity.
Six-Axis CNC Control: Driven by high-precision servo motors, the 6-axis system orchestrates flawless positioning, ensuring that every hole is executed exactly to the programmed digital coordinates.

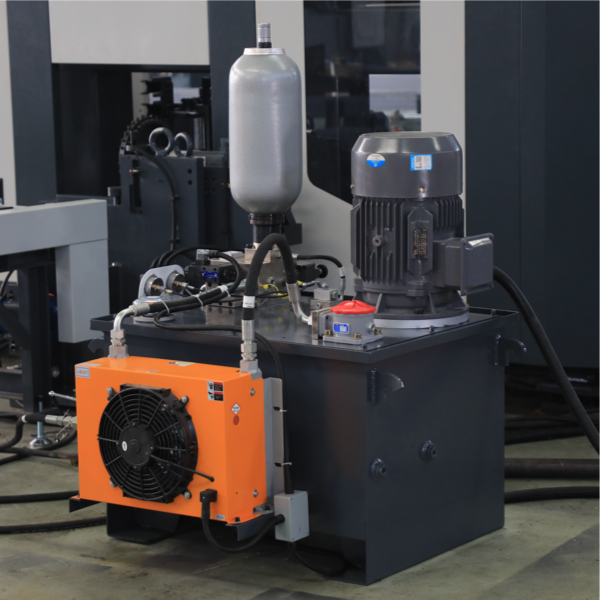

Unyielding Hydraulic Grip: The advanced hydraulic system executes a synchronized dance of longitudinal lifting and lateral pushing, locking workpieces weighing up to 10 tons into a completely immovable state.
Vibration-Free Operation: The massive 8000kg frame absorbs operational resonance, allowing the high-speed steel or carbide bits to enter and exit the material without any deflection or chatter.
Managing operational expenditure is just as critical as increasing production volume. This machine incorporates intelligent fluid and waste management systems that actively protect your most expensive consumables and reduce ongoing maintenance costs.
Advanced Mist Cooling: A sophisticated atomization system delivers precise internal and external cooling directly to the cutting edge. This micro-lubrication prevents thermal damage and significantly extends the lifespan of premium carbide drills.
Efficient Debris Evacuation: The continuous chain-type chip conveyor prevents sharp metal shavings from accumulating, ensuring they do not score the workpiece or damage the machine's moving parts.
Optimized Resource Consumption: Operating at a precisely regulated 0.8Mpa compressed air pressure, the cooling system minimizes fluid waste, ensuring a cleaner factory environment and lower consumable procurement costs over time.
Versatility is the cornerstone of a highly profitable industrial investment. Whether you are processing standard H-beams or specialized U-beams, this equipment adapts flawlessly to the rigorous demands of diverse engineering sectors.
Steel Structure Buildings: Perfectly suited for processing connection holes in factory frameworks, high-rise structural columns, and main beams of large-span roofs.
Bridge Engineering: Delivers the high-precision hole group positioning strictly required for heavy-load structures like steel truss girders, bridge piers, and box girders.
Multi-Story Parking Garages: Efficiently processes H-shaped steel columns in an automated line, dramatically enhancing downstream assembly speed and structural reliability.
Tower Masts and Grid Structures: Handles the lightweight yet highly precise demands of power transmission towers, communication masts, and sports venue grid structures.
Power Station Boilers: Capable of executing precise drilling and marking for critical pressure vessel components, including header tubes and heavy-duty drums.
Procuring heavy machinery requires absolute confidence in the manufacturer's quality assurance processes. This equipment is built from the ground up to satisfy the strict compliance requirements of large-scale multinational projects and government infrastructure contracts.
World-Class Components: The core elements of the control system are sourced exclusively from internationally renowned brands, guaranteeing long-term reliability and global parts availability.
ISO 9001 Quality Management: Manufactured under rigorous GB/T19001-2016/ISO9001:2015 standards, ensuring every single machine meets exacting tolerances before it ever leaves the factory floor.
Environmental & Safety Compliance: Fully certified under ISO 14001:2015 for environmental management and ISO 45001:2018 for occupational health and safety, aligning perfectly with modern corporate governance goals.
Your heavy-duty investment is protected by a comprehensive, globally accessible support network. We understand that equipment downtime is simply not an option, which is why our technical infrastructure is designed for rapid response and permanent resolution.
Round-the-Clock Accessibility: Our dedicated support team is available 24/7 via WeChat, WhatsApp, or high-definition video calls to troubleshoot issues instantly, regardless of your geographical time zone.
Comprehensive Warranty Coverage: Enjoy total peace of mind with a standard 12-month warranty following successful installation and commissioning, including the free replacement of any defective spare parts.
On-Site Expertise: We deploy highly trained international service engineers directly to your local market for hands-on installation, rigorous commissioning, and thorough operator training.
Permanent Technical Backing: Long after the warranty expires, you retain full access to our technical archives, operational guides, and paid spare parts inventory, ensuring decades of highly productive use.
Partnering with a dedicated industrial equipment manufacturer means securing a definitive competitive edge in your market. We do not just deliver machinery; we deliver a complete, highly profitable transformation of your production capabilities.
Proven Industry Pedigree: Decades of specialized, hands-on experience in engineering heavy-duty CNC solutions specifically tailored for the global structural steel sector.
Customization Capabilities: We understand that standard dimensions do not fit every project. Our engineering team can customize processing lengths well beyond the standard 15m to match your exact facility requirements.
End-to-End Solutions: From the initial technical consultation and factory layout planning to final installation and lifelong maintenance, we provide a seamless, integrated procurement experience.
Uncompromising Reliability: Every machine undergoes exhaustive, rigorous stress testing under maximum load conditions before shipment, ensuring it performs flawlessly from the exact moment it is powered on.
