As a premier manufacturer and supplier of heavy-duty structural fabrication equipment, we engineer solutions that redefine industrial productivity. The CNC High Speed Drilling Machine BHD1005-3 is a state-of-the-art processing center designed for high-capacity steel fabrication.
Engineered to process H-beams and U-beams with web heights up to 1000mm and thicknesses up to 80mm.
Features three independent high-speed spindles for simultaneous, multi-axis drilling.
Integrates robust hydraulic clamping and advanced CNC feeding for zero-vibration precision.
Built for industrial procurement demands, ensuring maximum throughput and minimal downtime.
Step onto the fabrication floor, and the first thing you will notice about the CNC High Speed Drilling Machine BHD1005-3 is its commanding presence and the rhythmic, low-decibel hum of its triple-spindle operation. Crafted from industrial-grade cast steel, the machine's robust frame feels immovably solid, effectively absorbing the intense kinetic energy generated during high-speed metal penetration. When the carbide drill bits bite into heavy steel beams at up to 3000 revolutions per minute, the resulting cut is remarkably smooth, leaving behind a polished, burr-free hole that perfectly aligns with stringent structural assembly requirements. The faint scent of atomized cooling mist fills the immediate workspace, a testament to the integrated thermal management system that keeps the tooling at optimal temperatures even during continuous, high-volume production runs. Every hydraulic movement—from the firm, lateral push of the clamping mechanism to the swift positioning of the feeding carriage—operates with a fluid, mechanical grace that eliminates material vibration. By transforming raw, heavy-duty H-beams into precisely engineered components with absolute consistency, this equipment fundamentally upgrades your production throughput, reducing manual handling and accelerating your entire structural fabrication workflow.
The BHD1005-3 is engineered to solve the most critical bottlenecks in heavy steel fabrication. By integrating high-speed processing with intelligent automation, this machine drastically reduces cycle times while ensuring absolute structural integrity.

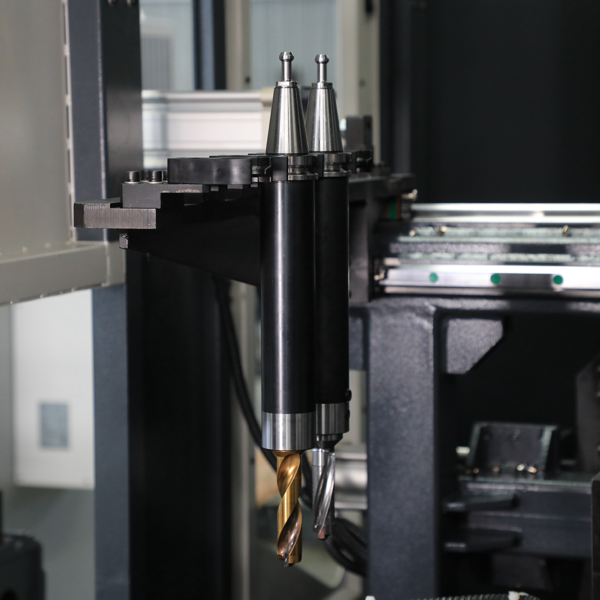

Triple-Spindle Synchronization: Three independent 11KW spindles operate simultaneously, allowing for complex hole patterns to be executed in a fraction of the time compared to single-spindle alternatives.
Stepless Speed Adjustment: The spindle rotation adapts seamlessly from 0 to 2000r/min (peaking at 3000rpm), providing the exact cutting dynamics required for different steel grades and drill bit types.
Vibration-Free Clamping: A comprehensive hydraulic network manages both longitudinal lifting and lateral pushing, locking massive beams into place to guarantee flawless hole geometry.
Intelligent Thermal Management: The internal and external mist cooling system preserves the structural integrity of both the workpiece and the BT40 tooling, preventing heat-induced warping.
Automated Debris Management: An integrated chain-type chip conveyor continuously removes metal shavings from the cutting zone, preventing mechanical jams and maintaining a clean, safe operational footprint.
Industrial procurement demands equipment that pushes the boundaries of production capacity. The BHD1005-3 is specifically designed to handle massive structural profiles with uncompromising speed.
Heavy-Duty Profile Handling: Capable of accommodating H-beams and U-beams with web heights up to 1000mm and material thicknesses up to 80mm, this machine effortlessly processes the foundational elements of large-scale infrastructure.
High-Speed Material Penetration: Utilizing cemented carbide drill bits (up to ￠30mm) and high-speed steel bits (up to ￠40mm) driven by a 3000rpm spindle, the equipment slashes drilling cycle times, significantly increasing daily tonnage output.

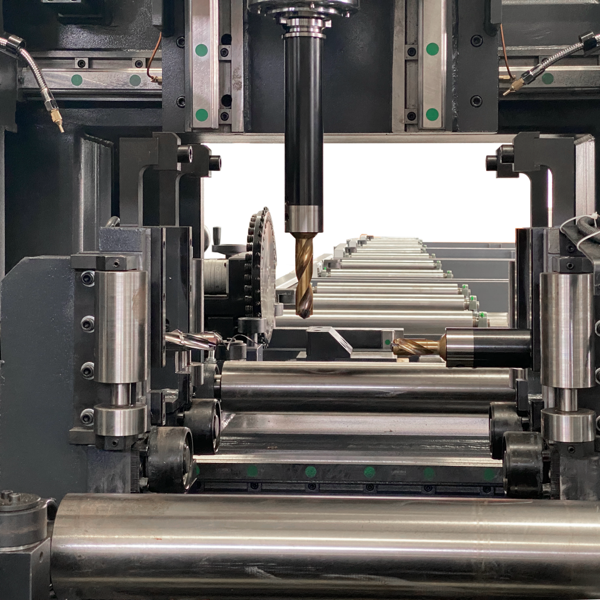

Synchronized Multitasking: The three-spindle architecture means top, left, and right flanges are processed simultaneously without the need to rotate or reposition the heavy workpiece, maximizing floor efficiency and throughput.
Transitioning to a highly automated fabrication floor is essential for reducing labor costs and eliminating human error. This drilling machine integrates top-tier digital control systems to streamline complex operations.
Six-Axis CNC Precision: With 6 distinct CNC axes powered by internationally renowned servo motors, the machine executes intricate, multi-dimensional drilling patterns with microscopic accuracy.
Commercial PC Interface: The control system utilizes a robust commercial PC, offering an intuitive programming environment that drastically lowers the learning curve for operators and allows for seamless integration with modern detailing software.
Optional ATC Integration: The Automatic Tool Changer (ATC) system can be configured to client specifications, entirely removing manual tool swaps from the equation, thereby preserving momentum during complex, multi-hole diameter projects.
In structural steel assembly, millimeter-level deviations in hole pitch can lead to catastrophic delays on the construction site. The BHD1005-3 guarantees exact positioning through superior mechanical engineering.
Heavy-Load CNC Carriage: The 5KW servo-driven feeding carriage handles beam weights up to 9.5 tons, moving massive materials at speeds up to 20m/min without sacrificing positional accuracy.
Omnidirectional Hydraulic Clamping: During feeding and processing, the hydraulic system automatically executes longitudinal lifting and lateral push clamping. This multi-point fixation eradicates micro-vibrations, ensuring the drill bit enters and exits the steel perfectly perpendicular.
Automated Width and Web Checking: With an 850mm width checking stroke and 240mm web checking stroke, the machine automatically compensates for the natural dimensional tolerances found in raw steel beams, ensuring holes are perfectly centered every time.
Consumable costs and maintenance downtime are critical metrics for any fabrication facility. This machine is engineered to protect your tooling investments and run continuously.
Atomized Mist Lubrication: Unlike messy flood cooling, the 0.8Mpa atomized mist system delivers precise cooling directly to the cutting edge (internally and externally). This drastically reduces thermal shock, extending the life of expensive carbide drill bits.
Continuous Chip Evacuation: The heavy-duty chain-type chip conveyor operates relentlessly beneath the cutting zone, hauling away sharp, hot steel chips before they can interfere with the clamping mechanisms or the operators' workspace.
Reduced Operational Costs: By optimizing the cooling delivery and automating waste removal, the machine minimizes coolant consumption and eliminates the need for manual mid-shift machine cleaning.
Maximizing floor space means investing in equipment that can handle multiple stages of the fabrication workflow. The BHD1005-3 offers seamless integration of secondary processes.

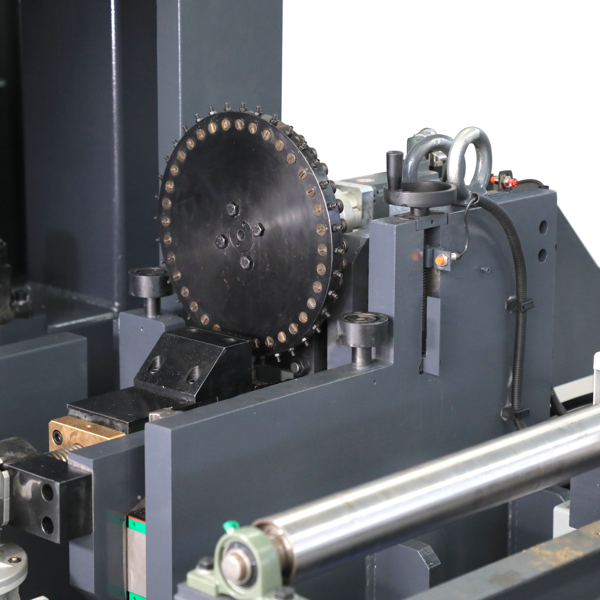

Automated Traceability: The optional hydraulic disk marking machine, positioned via a high-precision servo motor, can rapidly stamp 36 different characters onto the beam. This ensures every component is permanently serialized for easy identification during on-site assembly.
Workflow Consolidation: By combining high-speed drilling, automated feeding, and permanent character marking into a single linear process, the equipment eliminates the need to move heavy beams between different specialized workstations.
Customizable Length Configurations: While the standard feeding length is 15 meters, the entire carriage and track system can be customized to match the specific dimensional requirements of your manufacturing facility.
Investing in heavy machinery requires absolute confidence in the manufacturer's quality assurance and long-term support infrastructure. We provide comprehensive backing for every machine deployed.
Certified Manufacturing Excellence: Our production facilities strictly adhere to GB/T19001-2016/ISO9001:2015 (Quality), GB/T 24001-2016/ISO 14001:2015 (Environmental), and GB/T45001-2020/ISO45001:2018 (Occupational Health and Safety) standards.
Comprehensive Documentation & Training: Every machine is delivered with exhaustive mechanical, electrical, and hydraulic manuals. Following on-site installation, our expert engineers provide rigorous hands-on training for your operators.
Global Support Network: We maintain a permanent technical support infrastructure, offering 7x24 hour round-the-clock remote diagnostics via video call, supplemented by international service engineers available for local, on-site interventions.
Selecting the right equipment partner is just as critical as the machinery itself. As a dedicated manufacturer, we bridge the gap between innovative engineering and practical, floor-level reliability.
Direct Manufacturer Accountability: You are engaging directly with the engineers and builders of the equipment, ensuring transparent communication, rapid problem-solving, and zero middleman delays.
Uncompromising Component Selection: We utilize only internationally renowned brands for our control systems, servo motors, and hydraulic valves, ensuring your machine runs predictably for decades.
Tailored Engineering Solutions: We do not just sell off-the-shelf products; we customize feeding lengths, tool changers, and software integrations to perfectly match your unique production bottlenecks.
Guaranteed Uptime: Backed by a standard 12-month warranty post-commissioning, with free spare parts provided during the warranty period and guaranteed lifetime availability of paid spares.
