As a premier manufacturer and supplier of advanced structural steel fabrication equipment, we introduce the CNC H-Beam Beveling Machine BM38-12. Engineered for uncompromising precision, this system seamlessly integrates intelligent PLC controls with heavy-duty mechanical architecture to transform your production capabilities.
Automated PLC and touch-screen interface for intuitive operation
Simultaneous dual-end milling to eliminate workpiece repositioning
High-efficiency frequency conversion conveying systems
Constructed with premium imported components for sustained reliability
The CNC H-Beam Beveling Machine BM38-12 represents a definitive leap forward in heavy structural steel fabrication. Upon engaging the system, operators immediately notice the quiet, vibration-free movement of the massive slipways and the authoritative hum of the high-torque milling spindles. This sensory feedback is a direct result of its rigid, 10-ton dual-structure chassis, designed specifically to absorb the immense kinetic energy generated during heavy material removal. By allowing simultaneous milling on both ends of an H-beam, this machinery completely eradicates the cumbersome, time-consuming process of lifting and turning massive steel profiles on the shop floor.
Beyond its imposing physical presence, the machine is meticulously crafted to solve the most critical bottlenecks in modern construction and machinery manufacturing. The tactile responsiveness of the industrial touch-screen allows your technicians to input complex beveling parameters effortlessly, transforming raw steel into perfectly prepped components with mirror-like edge finishes. The sophisticated air-over-hydraulic clamping mechanism grips the steel with unyielding force, ensuring zero micro-shifts during the milling process. This absolute rigidity guarantees that every arc notch and straight-line bevel meets the strictest engineering tolerances, drastically reducing on-site assembly time and ensuring flawless, high-strength weld joints for your most demanding projects.
Discover the engineering excellence that sets this beveling equipment apart in demanding fabrication environments. Our system is engineered to minimize operational downtime while maximizing output precision, ensuring your production lines remain highly profitable.
Simultaneous Multi-Axis Milling: Equipped with four robust columns and three-axis milling heads, the machine processes both flanges and webs concurrently, drastically cutting down cycle times.
Intelligent Material Conveyance: Integrated infeed, outfeed, and transmit conveyors utilize advanced frequency converters for infinitely adjustable speeds, ensuring smooth and safe material handling without overhead cranes.
Unwavering Structural Stability: The massive 10,000 kg total structural weight acts as a dampening foundation, absorbing operational vibrations and delivering a consistently smooth milling action.
Advanced Clamping Dynamics: Utilizes flange-inside positioning and up-down jaw float clamping, powered by an 11:1 gas-liquid pressure amplifier to maintain absolute workpiece rigidity.
Global Component Sourcing: Critical internal parts, including linear rolling guides, ball screws, and photoelectricity encoders, are sourced from top-tier international brands to guarantee extended service life.
In high-volume structural steel fabrication, throughput is the ultimate metric of success. This machine is specifically designed to eliminate the most time-consuming steps in beam processing, allowing your facility to handle larger contracts with shorter lead times.
Dual-End Processing: The dual/four-column architecture allows simultaneous milling on both ends of the beam, effectively doubling your output compared to traditional single-head machines.
Versatile Beveling Profiles: Effortlessly executes straight-line bevels and complex arc notches on both flanges and webs, providing ready-to-weld surfaces directly off the line.
Zero-Turn Workflow: By utilizing synchronized inline and offline conveying roller ways, heavy H-beams glide through the machining zone without ever needing to be flipped or rotated by external machinery.
High-Speed Material Removal: Powered by four 7.5 kW spindle motors rotating at 400 r/min, the machine slices through thick structural steel with aggressive efficiency, maintaining optimal chip evacuation.
Modern fabrication demands precision that manual operation simply cannot consistently achieve. We have integrated state-of-the-art automation protocols to lower the skill barrier for operators while elevating the dimensional accuracy of your final products.

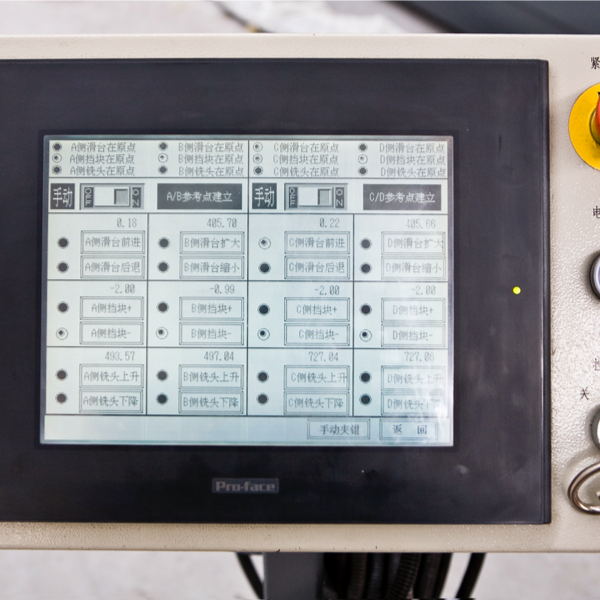

Intuitive Touch-Screen Interface: The industrial-grade screen provides a clear, visual representation of the machining process, allowing operators to input dimensional data with a few simple taps.
Advanced PLC Brain: The programmable logic controller acts as the central nervous system, instantly translating operator inputs into precise, synchronized movements across all axes.
Automated Adjustment: Once the data is entered, the machine automatically calibrates its slipways, clamping jaws, and milling heads to match the exact profile of the incoming H-beam.
Error Reduction: By removing manual measuring and manual tool positioning from the equation, the CNC system drastically reduces material waste caused by human error.
The secret to flawless milling lies in the absolute immobilization of the workpiece. Any micro-vibration during the cutting process can lead to chatter marks and out-of-tolerance bevels. Our clamping technology ensures your steel remains perfectly static.
Flange-Inside Positioning: The machine references the internal geometry of the flange, establishing a true datum line that guarantees the milled bevel is perfectly square to the beam's core structure.
Floating Web Clamping: Two synchronized up-down jaws apply uniform pressure across the web, adapting to slight material imperfections without distorting the beam.
Gas-Liquid Amplification: The sophisticated air-over-hydraulic booster amplifies standard pneumatic pressure by a ratio of 11:1, delivering a crushing 3.5 to 8 kN of clamping force.
Rigid Slipway Travel: The longitudinal and transverse slipways utilize high-precision linear rolling guides, ensuring the milling heads travel with zero lateral deflection even under heavy cutting loads.
Industrial machinery is only as reliable as its weakest component. We refuse to compromise on the internal architecture of our equipment, ensuring that your investment continues to perform flawlessly year after year in harsh, dust-filled environments.
Internationally Sourced Electronics: The frequency converters, PLC, and photoelectric encoders are imported from globally recognized brands, ensuring stable signal transmission and immunity to electrical noise.
Wear-Resistant Mechanicals: The ball screws and reductors are machined from hardened alloys, designed to withstand continuous, multi-shift operations without losing their tight tolerances.
Thermal Resilience: Engineered to operate flawlessly in ambient temperatures ranging from 0℃ to 40℃, making it suitable for both frigid northern facilities and sweltering tropical plants.
Protected Guideways: All linear motion components are shielded against metallic dust and cutting fluids, drastically extending the maintenance intervals and overall life of the machine.
