Engineered for high-capacity structural steel fabrication and heavy machinery manufacturing
Integrated PLC system with intuitive touch-screen for automated, precision milling
Simultaneous dual-end processing eliminates the need to rotate massive workpieces
Accommodates heavy-duty H-beams up to 1250 mm in height and 600 mm in width
Sourced directly from a premier manufacturer, ensuring premium quality and dedicated global support
Step onto the fabrication floor, and the CNC H-Beam Beveling Machine BM55-12 commands immediate attention with its imposing industrial footprint and the quiet, steady hum of its advanced hydraulic systems. Designed specifically for the rigorous demands of heavy steel construction, this machine eliminates the cumbersome, dangerous, and time-consuming process of manually turning multi-ton steel beams. The smooth, rhythmic engagement of its cemented carbide indexable milling cutters against raw structural steel produces clean, precise arcs and straight-line bevels, leaving behind a polished, mirror-like finish on the milled surfaces. The faint scent of cutting fluids and freshly machined metal serves as a constant testament to its relentless, high-speed productivity.

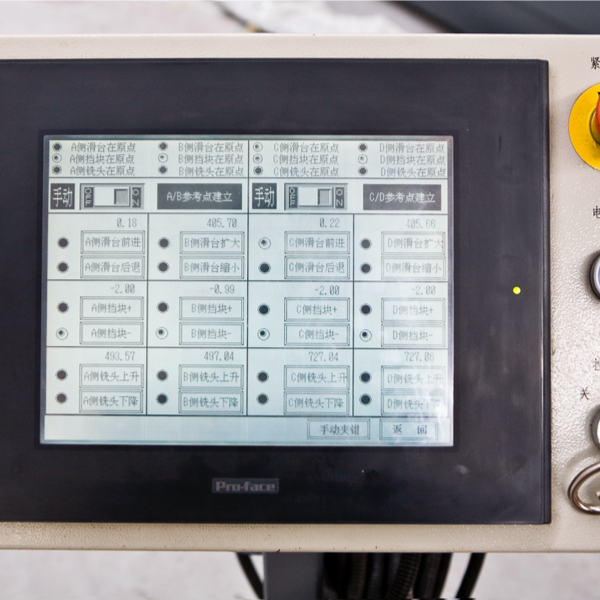

At the heart of this formidable equipment lies a masterfully engineered architecture featuring four independent columns, each gliding effortlessly along heavy-duty longitudinal and transverse slipways. When the operator inputs the required dimensions into the responsive touch-screen interface, the machine's intelligent PLC system takes full control, orchestrating a symphony of automated adjustments. The robust infeed, outfeed, and transmit conveyors, driven by precise frequency converters, guide the massive H-beams into the machining zone with fluid, uninterrupted motion. By executing both end milling and web/flange beveling simultaneously, this equipment dramatically compresses production timelines, ensuring your fabrication facility meets the most aggressive project deadlines with unwavering accuracy and superior structural integrity.
Equipping your production line with the BM55-12 transforms raw steel processing into a highly streamlined, predictable operation. Every feature is meticulously crafted to reduce manual intervention, maximize throughput, and deliver flawless end-products that meet strict engineering tolerances.
Simultaneous Dual-End Processing: The integration of four powerful columns allows the machine to mill and bevel both ends of the H-beam at the exact same time. This entirely eliminates the dangerous and time-consuming need to rotate multi-ton steel beams on the factory floor.
Intelligent Conveyor Integration: Featuring a synchronized system of infeed, outfeed, and transmit conveyors, the machine handles heavy material flow with fluid precision. The adjustable speed, managed by a high-end frequency converter, ensures smooth transitions between cutting phases.
Rock-Solid Hydraulic Clamping: Utilizing a sophisticated float clamping mechanism for the web via two up-down jaws, combined with air-over-hydraulic boosters, the workpiece remains absolutely immobilized against the immense torque of the four 15kW spindle motors.
Premium Imported Components: To guarantee decades of reliable service, critical internal mechanisms including the linear rolling guides, precision ballscrews, and photoelectricity encoders are sourced from top-tier international brands known for their durability.

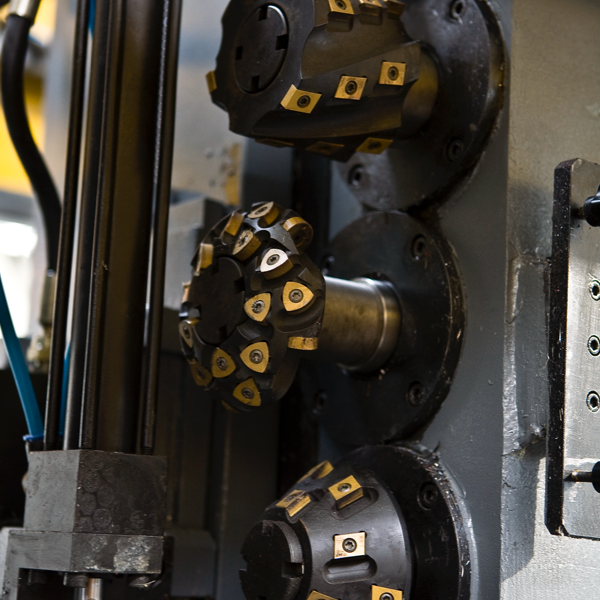

Versatile Milling Profiles: The high-grade cemented carbide indexable cutters are capable of executing complex geometries, from standard straight-line bevels to intricate arc notches, providing unparalleled flexibility for diverse structural requirements.
Selecting the right equipment manufacturer is a critical investment in your company's future production capabilities. We stand apart in the global industrial machinery landscape by delivering not just heavy-duty equipment, but complete, reliable manufacturing solutions tailored for high-volume fabrication.
Uncompromising Manufacturing Standards: Operating under strict ISO 9001, ISO 14001, and ISO 45001 certifications, our production facilities maintain rigorous quality control protocols. Every machine is subjected to exhaustive load testing and precision calibration before it ever reaches your facility.
Global Support Infrastructure: We understand that downtime is costly. That is why we maintain a robust network of international service engineers ready to deploy to your site. Coupled with our round-the-clock remote diagnostic support, we ensure your operations remain uninterrupted.
Direct-from-Source Value: By acquiring your machinery directly from the primary manufacturer, you benefit from highly competitive pricing structures without sacrificing the premium quality of imported core components.
Comprehensive Operator Empowerment: We do not just drop off a machine; we integrate it into your workflow. Our expert engineers provide extensive, hands-on training for your staff covering mechanical, electrical, and hydraulic systems, ensuring your team can maximize the machine's potential from day one.
Lifetime Technical Partnership: Beyond the standard 12-month warranty, we offer permanent technical support and a readily available inventory of spare parts, ensuring your investment continues to yield returns for decades.

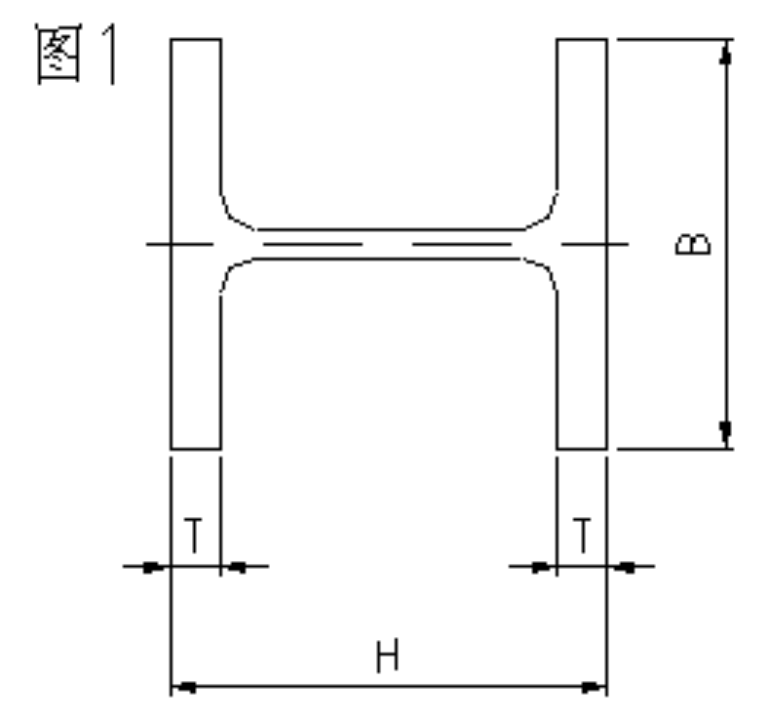

Cross-section diagram of an H-beam detailing the Height H, Width B, and Thickness T dimensions for the CNC beveling machine
