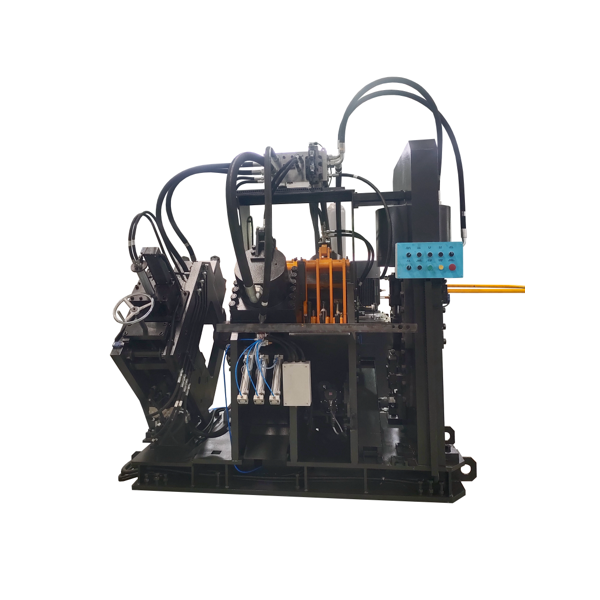

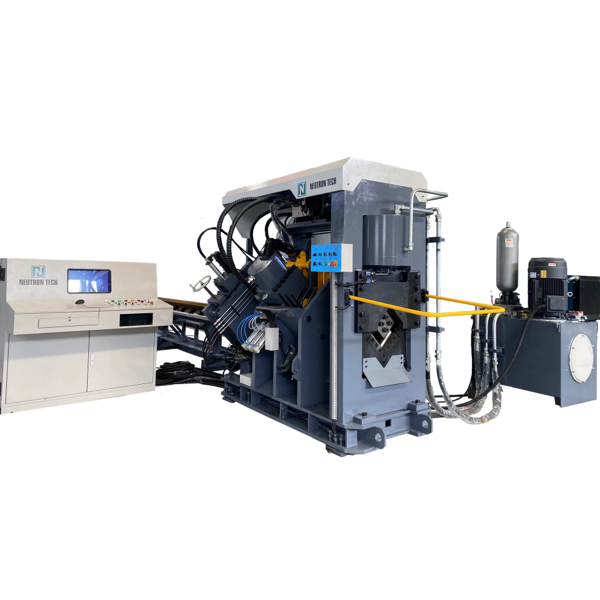

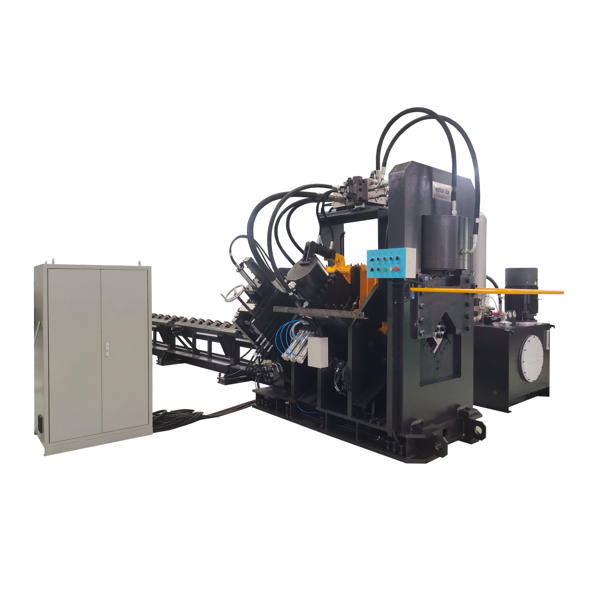

| APM1616 angle punching, marking and cutting production line is mainly composed of punching unit, marking unit, cutting unit, transverse conveyor, rotating conveyor, feeding conveyor, unloading conveyor, CNC feeding carriage, hydraulic system, electrical system, pneumatic system and so on.This production line is mainly used for the automatic processing of angle steel in tower industry. The processing process is numerically-controlled and the operation is very convenient. It can realize the automatic, high-precision, multi-varieties and mass production. | |||||||||
As a premier manufacturer and supplier of heavy-duty fabrication equipment, we present the CNC Angle Punching Marking and Cutting Machine APM1616. This robust system is engineered to seamlessly transform raw steel into precision-crafted structural components, ensuring your production line operates at peak capacity.
High-efficiency automated processing line designed for continuous, high-volume output.
Integrates precision punching, clear marking, and clean single-blade cutting into one fluid operation.
Engineered specifically to meet the rigorous demands of the tower fabrication and heavy structural framework industries.
Dramatically reduces manual labor and material waste while elevating overall component quality.
Step onto the production floor, and the first thing you will notice is the rhythmic, unyielding power of the CNC Angle Punching Marking and Cutting Machine APM1616. Crafted with a heavy-duty steel frame that absorbs intense vibration, it emits a low, steady hum of industrial reliability. When the hydraulic cylinders engage, they deliver a smooth, decisive force that pierces through thick steel angles with absolute precision. The resulting holes are immaculate, and the sheared edges are clean and burr-free, completely eliminating the need for secondary grinding or finishing. The metallic gleam of the linear guides and the robust clamping arms speak volumes about its premium craftsmanship, designed to withstand the harshest manufacturing environments without faltering.
Beyond its imposing physical presence, this machine acts as a catalyst for complete operational transformation. It eliminates the chaotic, error-prone bottleneck of manual layout and drilling, replacing it with a streamlined, continuous flow of automated production. You will watch raw steel seamlessly enter the transverse conveyors, glide through the processing units under closed-loop servo control, and emerge as perfectly marked, punched, and cut components ready for immediate assembly. By eradicating material waste through its innovative single-blade shearing mechanism and minimizing human error, it dramatically lowers production costs while elevating the structural integrity and safety of every tower, bridge, or framework your facility produces.
Engineered for maximum output and minimal downtime, this machine integrates advanced mechanical and hydraulic engineering to elevate your production capabilities. Every component is designed to solve common fabrication challenges and streamline your daily workflow.

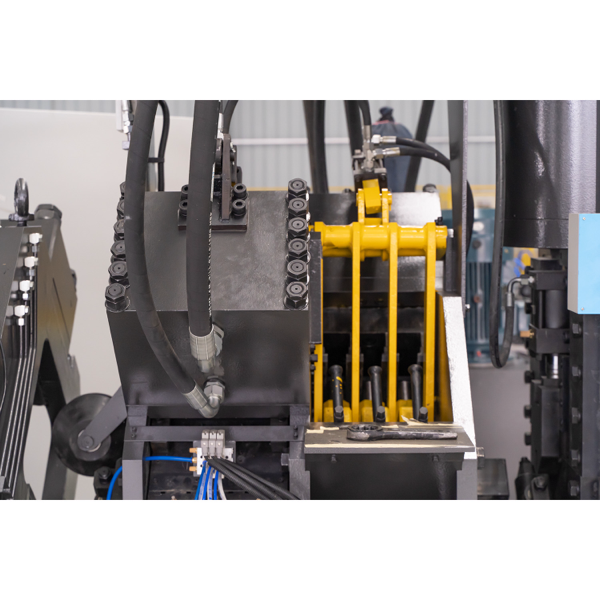

Triple Punching Dies: Features three sets of punching dies on each side, allowing for the installation of three different punch diameters. Numerical control moves these dies swiftly to change stadia without manual intervention.
Versatile Marking Unit: The highly rigid marking unit houses four sets of cassettes, selectable via programming, allowing typing stadia to be set at will for clear, permanent component identification.

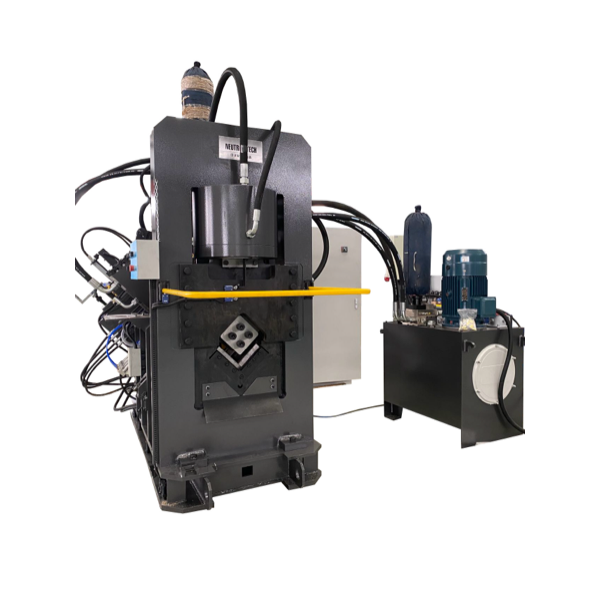

Zero-Waste Shearing: The cutting unit utilizes a single-blade shearing mechanism. This guarantees a perfectly neat cutting surface while ensuring absolutely no material waste during each cut, optimizing raw material usage.
Smooth Material Handling: The transverse conveyor supports and smoothly transmits the raw material, while a reducer-driven rotating conveyor feeds the angle into the longitudinal line without jarring or misalignment.

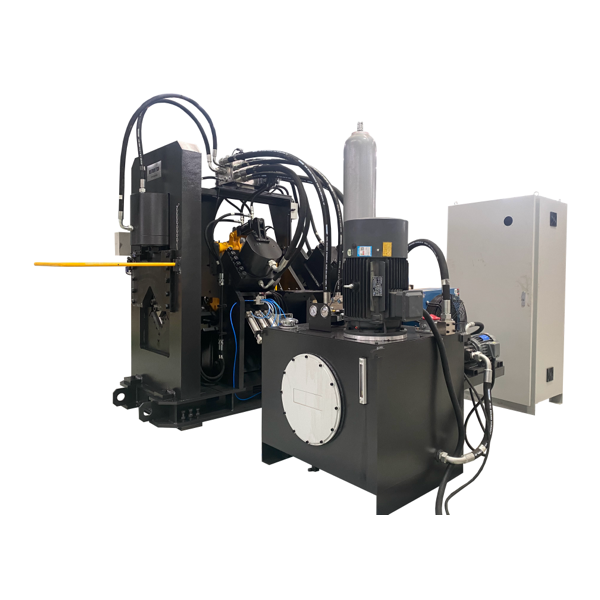

Leak-Resistant Hydraulics: The hydraulic pipeline adopts a premium sleeve-type connection. This significantly reduces the risk of oil leaks, making routine maintenance and part replacement exceptionally convenient.
Meeting strict production deadlines requires equipment that can handle heavy workloads without compromising on speed or power. This machine is engineered to process massive structural components with unparalleled swiftness, ensuring your facility can take on larger contracts with confidence.
Heavy-Duty Capacity: Capable of processing thick, heavy angle steel ranging from ∠40×3 up to an impressive ∠160×16 (Q345), making it perfectly suited for massive infrastructure projects.
Immense Force Delivery: Generates a nominal punching force of 950kN and a staggering cutting force of 3000kN, effortlessly piercing and shearing high-tensile steel without stalling or jamming.
High-Speed Infeeding: Achieves an exceptional infeeding speed of up to 40 meters per minute, drastically reducing cycle times and multiplying your daily output.
Rapid Tool Switching: The single-side three-die setup allows the machine to punch multiple hole sizes in a single pass without stopping for manual tool changes, keeping the production line moving continuously.
In structural assembly, a fraction of a millimeter can determine the success or failure of a joint. This system is built to guarantee absolute positional accuracy, ensuring every piece fits perfectly on the construction site, thereby eliminating costly rework and material rejection.
Closed-Loop Positioning: The workpiece is held and fed by a CNC feeding carriage driven by a highly responsive servo motor, ensuring exact dimensional accuracy across the entire 12-meter raw angle.
High-Rigidity Clamping: A robust clamp arm, guided by a precision linear guide, moves up and down to secure the steel firmly, preventing any micro-movements during the high-impact punching and shearing phases.
Flawless Cut Quality: The single-blade shearing technology not only saves material but also prevents the deformation and burring typically associated with double-blade or saw cutting, ensuring a 100% yield rate of usable parts.
Consistent Marking Depth: The 1030kN marking force ensures that every character is stamped with uniform depth and clarity, remaining legible even after galvanizing or heavy painting.
Transitioning from manual handling to a fully automated workflow is essential for modern fabrication facilities looking to optimize resource allocation. This production line is designed to operate with minimal human intervention, protecting your workforce from heavy lifting while maximizing output.
Unmanned Loading System: Equipped with four sets of transverse conveyors that feed the heavy steel angles automatically and intermittently, completely removing the need for overhead cranes or manual lifting during the feeding stage.
Automated Outfeed: Once processed, the finished angle conveyor is seamlessly rotated to one side by reliable pneumatic power, safely organizing finished pieces up to 8 meters in length for easy bundling.
One-Touch Operation: The operator only needs to input the processing requirements or load the file; the machine takes over the entire sequence of feeding, marking, punching, and cutting automatically.
Reduced Labor Costs: By consolidating four distinct manual processes into one automated line, you can reallocate your skilled labor to higher-value tasks, significantly reducing your overall operational overhead.
Complex machinery should not require a steep learning curve. We have designed the control interface to be as intuitive as it is powerful, ensuring your operators can transition to automated production smoothly and without extensive IT training.
Seamless File Integration: The system directly reads DSTV, DXF, NC, and CAM files generated by industry-standard lofting and detailing software. This eliminates manual data entry and drastically reduces programming time.
Intuitive Graphical Interface: The upper computer features a highly visual, man-machine interface. Operators can view a graphical display of the workpiece to verify hole placements and cutting lines before initiating the cycle.
Automated Program Generation: Even without CAD files, operators can easily input basic parameters via keyboard or USB, and the intelligent software will automatically generate the optimal processing program.
Real-Time Diagnostics: The system boasts a large data storage capacity, real-time location data display, and instant fault alarms, allowing for immediate troubleshooting and ensuring maximum machine uptime.
Investing in heavy machinery means expecting decades of reliable service. Every component of this machine is selected for its endurance under harsh industrial conditions, ensuring your investment yields a high return over a long operational lifespan.
Closed-Structure Marking Unit: The marking unit is engineered with a closed frame design, offering exceptional rigidity to withstand the repetitive shock of 1030kN stamping forces without structural fatigue.
Wear-Resistant Components: The linear guides, servo drives, and hydraulic cylinders are sourced from top-tier supply chains, ensuring they resist wear and maintain precision even after millions of cycles.
Optimized Hydraulic Architecture: By utilizing advanced sleeve-type connections in the hydraulic pipelines, the system inherently resists the vibrations that typically cause oil leaks in older machine designs.
Temperature Resilience: Designed to operate flawlessly in working environments ranging from 0℃ to 40℃, making it suitable for unheated factory floors or facilities in high-temperature regions.
Procuring industrial equipment is only the beginning of our partnership. We provide comprehensive, long-term support to ensure your operations never halt, giving you the ultimate peace of mind regarding your capital investment.
Comprehensive Warranty: We provide a standard 12-month warranty following successful installation and commissioning, during which all necessary spare parts are provided completely free of charge.
Round-the-Clock Assistance: Our technical team offers 7x24 hour continuous online service via WeChat, WhatsApp, or high-definition video calls to instantly resolve any operational queries.
On-Site Global Engineering: We maintain a network of international service engineers available to visit your local market for on-site installation, rigorous operator training, and hands-on troubleshooting.
Permanent Technical Backing: Even after the warranty period expires, we guarantee permanent technical support and the readily available supply of paid spare parts at any time you need them.
Partnering with a dedicated manufacturer means gaining access to unparalleled engineering expertise and a steadfast commitment to your operational success. We don't just build machines; we engineer solutions that drive your business forward.
Certified Manufacturing Excellence: Our production facilities strictly adhere to the highest global standards, proudly holding GB/T19001-2016/ISO9001:2015 for Quality Management.
Commitment to Safety & Environment: We are fully certified under ISO45001:2018 for Occupational Health and Safety, and ISO14001:2015 for Environmental Management, ensuring responsible and safe manufacturing practices.
Direct Manufacturer Value: By bypassing intermediaries, we provide top-tier, high-quality fabrication equipment directly to your facility at highly competitive pricing, maximizing your return on investment.
Proven Industry Track Record: With years of specialized experience in tower industry equipment, our machines are trusted by major structural fabricators worldwide for their relentless reliability and precision.
