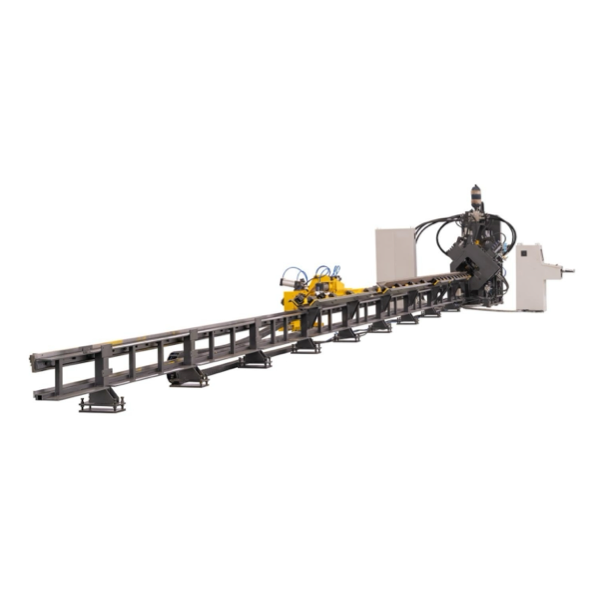

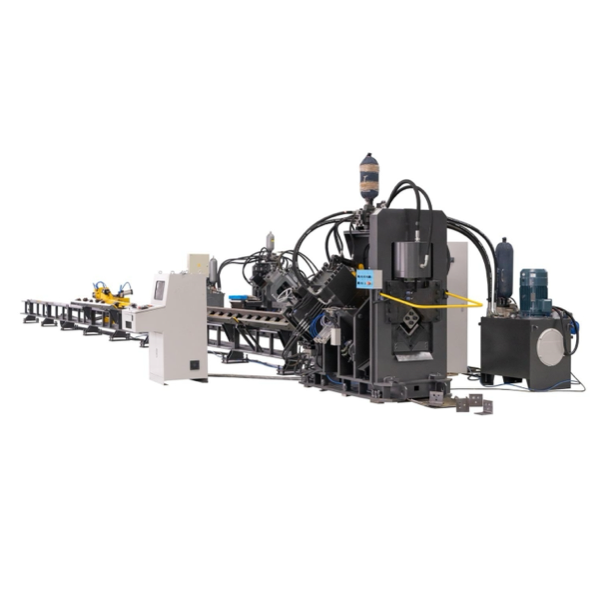

| APM1412 angle punching, marking and cutting production line is mainly composed of punching unit, marking unit, cutting unit, transverse conveyor, rotating conveyor, feeding conveyor, unloading conveyor, CNC feeding carriage, hydraulic system, electrical system, pneumatic system and so on.This production line is mainly used for the automatic processing of angle steel in tower industry. The processing process is numerically-controlled and the operation is very convenient. It can realize the automatic, high-precision, multi-varieties and mass production. | |||||||||
As a leading manufacturer and supplier of heavy-duty industrial fabrication equipment, we present the CNC Punching Marking and Cutting Machine APM1412. Engineered for high-volume angle processing, this robust system streamlines tower fabrication and structural steel production.
Integrates punching, marking, and shearing into one automated, high-speed workflow.
Processes approximately 1000 holes per hour with exceptional dimensional precision.
Compatible with industry-standard lofting software for seamless file-to-factory operation.
Built with rigid hydraulics and servo-driven mechanisms for continuous industrial output.
Step onto the production floor, and the first thing you will notice is the rhythmic, unyielding hum of the APM1412 angle processing line. This machine is not just a piece of equipment; it is the beating heart of high-efficiency steel fabrication. The heavy-duty steel frame exudes a sense of permanence and industrial strength, absorbing vibrations effortlessly even when driving 950KN of punching force through thick Q420 steel angles. Every hydraulic movement is smooth and deliberate, guided by premium linear rails that ensure pinpoint accuracy without the jarring mechanical noise typical of lesser machinery.
Beyond its imposing physical presence, this system completely transforms raw material handling. The transverse conveyors smoothly transition heavy steel angles into the longitudinal feeding carriage, where high-torque servo motors take over with whisper-quiet precision. When the single-blade shear activates, it slices through the metal with a clean, decisive motion, leaving a pristine, burr-free edge with absolute zero material waste. The tactile feedback of the intuitive touchscreen interface puts absolute control at the operator's fingertips, turning complex blueprints into tangible, perfectly processed structural components in mere minutes. It elevates factory throughput, minimizes manual handling errors, and delivers a consistent, premium finish that structural engineers and project managers demand.
Elevating your fabrication capabilities requires machinery that anticipates production bottlenecks and eliminates them before they occur. The APM1412 is engineered with a suite of advanced mechanisms designed to maximize uptime, reduce raw material waste, and ensure every finished angle meets the strictest engineering tolerances.

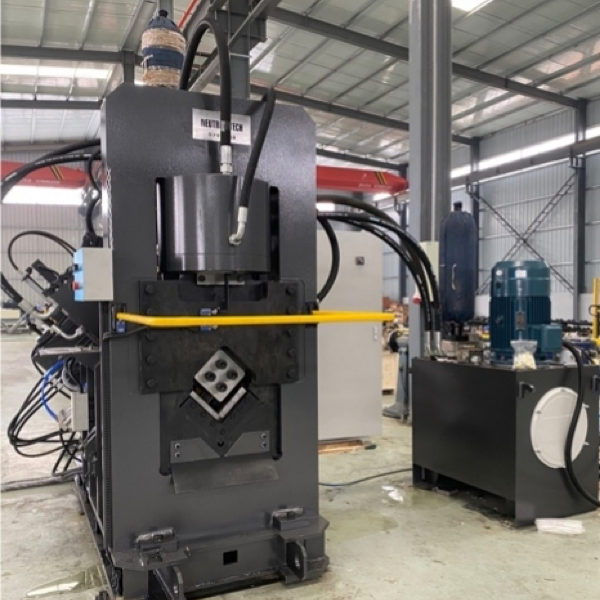

Triple-Die Punching Versatility: Each side of the punching unit houses three distinct die sets, allowing operators to seamlessly shift between different hole diameters without manual tool changes, drastically reducing setup times.
Zero-Waste Shearing Technology: Utilizing an advanced single-blade shearing mechanism, the machine executes perfectly clean cuts. This eliminates the scrap typically generated between cuts, optimizing material yield and reducing factory floor cleanup.

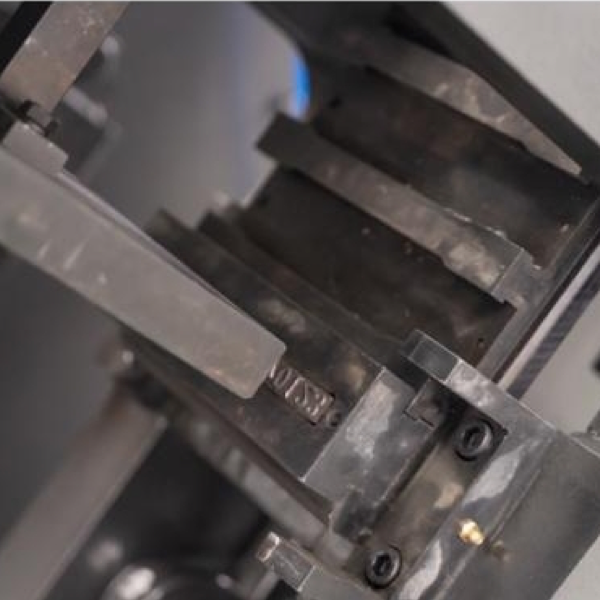

Dynamic Marking Cassettes: The highly rigid marking unit features four selectable cassettes, each holding twelve characters. This allows for rapid, programmable stamping of part numbers and lot codes directly into the steel, ensuring permanent traceability.
Automated Material Handling: From the transverse in-feed conveyors to the pneumatic rotating out-feed system, material flows continuously. This reduces the need for overhead cranes and manual labor, keeping the processing continuous and safe.
Leak-Resistant Hydraulics: The hydraulic pipeline utilizes premium sleeve-type connections, mitigating the risk of fluid leaks. This ensures consistent pressure for the massive 1800KN cutting force while keeping the workspace pristine.
Speed and accuracy are the twin pillars of profitable steel fabrication. This machine redefines factory throughput by consolidating three critical operations into a single, high-velocity workflow, ensuring your projects stay ahead of schedule.
Rapid Feed Rates: The raw material advances at an impressive 40 meters per minute, minimizing idle time between punching and shearing operations.
High-Volume Output: Capable of executing approximately 1000 precise punches per hour, it easily keeps pace with demanding, large-scale infrastructure project schedules.
Consolidated Operations: By integrating marking, punching, and cutting, it eliminates the need to move heavy steel angles between separate, isolated workstations.
Material Optimization: The single-blade shear not only ensures a neat, burr-free cutting surface but also guarantees zero waste per cut, directly improving the bottom line on raw material expenditures.
The true intelligence of the APM1412 lies in its sophisticated, user-centric control architecture. It bridges the gap between the drafting room and the factory floor with flawless data integration and intuitive operation.
Seamless File Integration: The system effortlessly reads processing files generated by leading lofting software (such as TEKLA and AutoCAD), natively supporting DSTV, DXF, NC, and CAM formats.
Intuitive Interface: The upper computer features a highly visual man-machine interface, displaying workpiece graphics, location data, fault alarms, and real-time operational status.

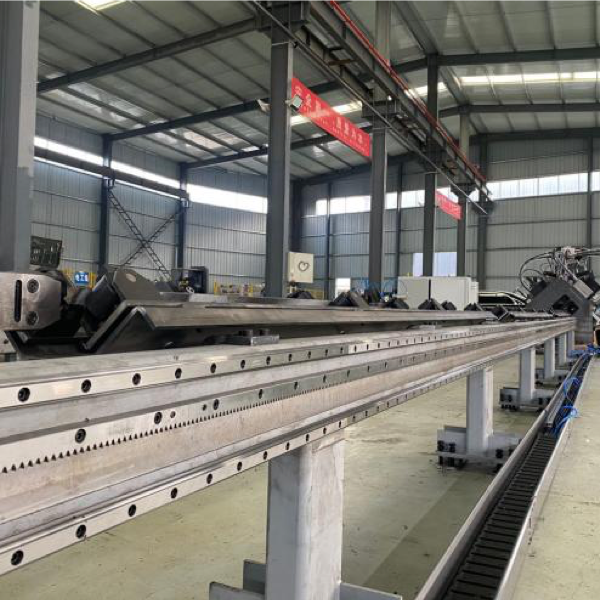

Servo-Driven Precision: The CNC feeding carriage, powered by high-torque servo motors, ensures flawless positioning accuracy for every punch and cut along the X, Y, and Z axes.
Automated Programming: Operators simply input the processing requirements via keyboard or USB, and the system automatically generates the optimal processing program, eliminating manual calculation errors.
Industrial environments demand equipment that can withstand relentless, heavy-duty operation. The structural integrity of this machine guarantees consistent performance shift after shift, year after year, minimizing unexpected downtime.

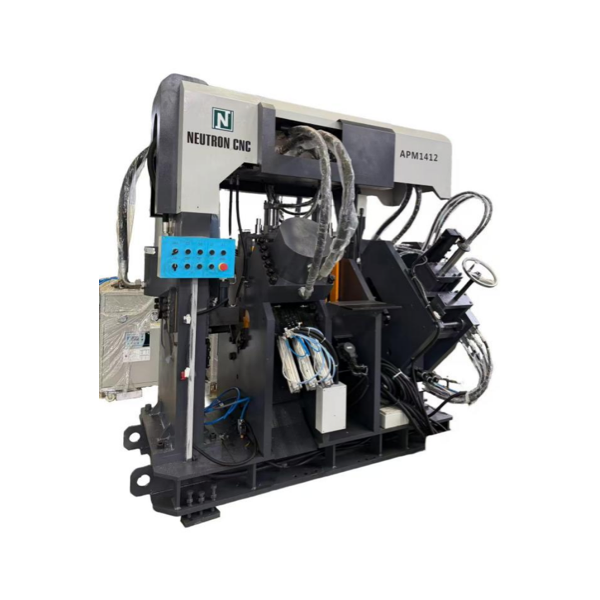

Rigid Marking Unit: The closed-frame design of the marking unit prevents deflection under the massive 1030KN stamping force, ensuring deep, legible, and permanent characters.
Hydraulic Cylinder Support: The punching unit's supporting device is driven by heavy-duty hydraulic cylinders, allowing for smooth, reliable, and convenient vertical adjustments.
Linear Guide Precision: The high-rigidity clamp arm moves up and down along premium linear guides, securing the workpiece firmly without marring the surface during high-speed feeding.
Robust Framework: The overall heavy-duty machine base is engineered to absorb the shock of 950KN punching forces, ensuring long-term mechanical stability and preserving the lifespan of the tooling.
Investing in heavy machinery is a long-term commitment, and our comprehensive support infrastructure ensures your operations never miss a beat. We stand behind our engineering with unwavering dedication to your success.
Comprehensive Documentation: Every machine is delivered with detailed operational guides and manuals covering all mechanical, electrical, and hydraulic systems.
On-Site Commissioning: Our international service engineers are available to conduct on-site installation, ensuring the equipment is perfectly calibrated to your facility's specific environment.
Operator Empowerment: Post-installation, we provide rigorous training sessions for your operators, ensuring they can maximize the machine's capabilities safely and efficiently.
Round-the-Clock Assistance: Technical support is permanent and accessible 24/7 via video call, WeChat, or WhatsApp, providing immediate troubleshooting when you need it most.
Reliable Warranty: Backed by a standard 12-month warranty after successful commissioning, with free spare parts provided during this period and priority access to paid spares thereafter.
Trust in industrial manufacturing is built on verifiable, international standards. Our production processes are audited and certified by leading global bodies, ensuring every machine delivered meets the highest expectations for excellence and safety.
Quality Management: Certified under GB/T19001-2016/ISO9001:2015, guaranteeing that our manufacturing processes consistently yield high-quality, defect-free machinery.
Environmental Responsibility: Adhering to the GB/T 24001-2016/ISO 14001:2015 environmental management system, reflecting our commitment to sustainable and eco-conscious production practices.
Occupational Health & Safety: Fully compliant with GB/T45001-2020/ISO45001:2018 standards, ensuring that our equipment is designed and built with the utmost regard for operator safety.
International Compliance: These rigorous certifications ensure that our machinery seamlessly integrates into the supply chains of global procurement teams, meeting all regulatory and compliance benchmarks.
Selecting the right manufacturing partner is as critical as selecting the right machinery. As a premier supplier of structural steel processing equipment, we deliver more than just heavy metal; we deliver operational certainty and long-term value.
Engineering Pedigree: Decades of specialized experience in designing heavy-duty CNC machinery specifically tailored for the demanding tower and steel structure industries.
Uncompromising Component Sourcing: We utilize only premium-grade servo motors, hydraulic valves, and CNC controllers to ensure maximum longevity and reliability.
Customization Capabilities: We understand that no two factory floors are identical. We offer customized layout planning to integrate the APM1412 seamlessly into your existing material flow.
Lifecycle Partnership: From the initial consultation and blueprint analysis to permanent technical support and legacy parts availability, we act as a dedicated extension of your engineering team.
