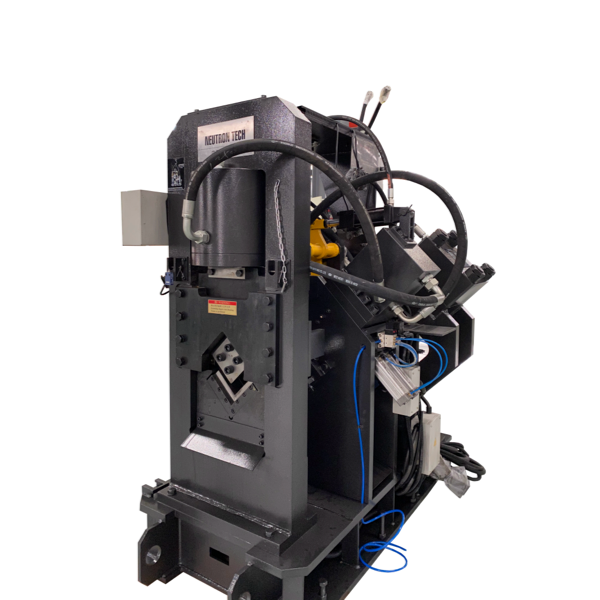

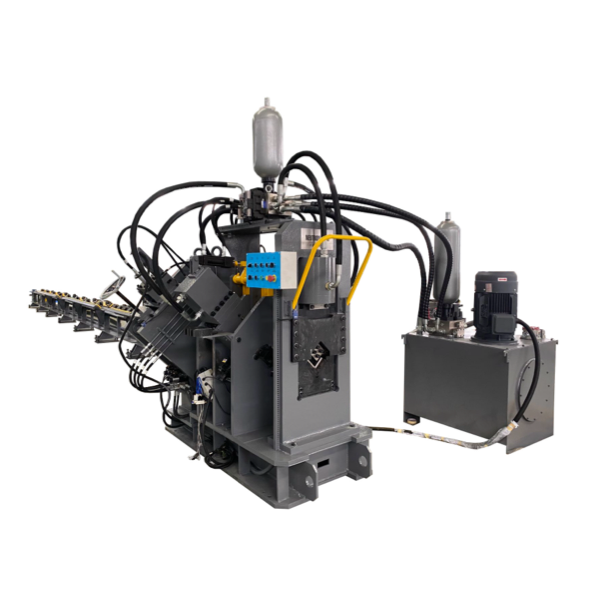

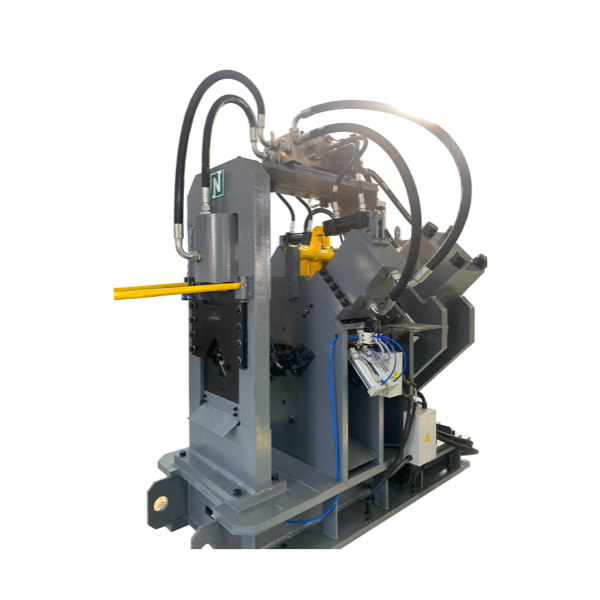

| The APM1010 CNC Angle Punching, Marking, and Cutting Machine delivers high-efficiency precision processing for small-sized angles (min. 30x30x4mm), making it indispensable for tower manufacturing. This compact production line integrates punching, marking, and shearing functions with servo-driven CNC positioning for superior accuracy. - Features three sets of interchangeable punching dies per side with controlled spacing adjustment - Hydraulic-driven punching support and rigid marking unit with four programmable cassettes - Servo-motor CNC feeding carriage with linear guides ensures ±0.1mm positioning accuracy - Processes DSTV/DXF/NC files via intuitive HMI with automatic program generation | |||||||||
As a premier manufacturer and supplier of heavy-duty fabrication equipment, we present this advanced automated angle processing center. Engineered for absolute structural integrity, it is designed to streamline massive steel fabrication workflows seamlessly.
Integrates precision marking, punching, and shearing into one continuous automated line.
Built with a robust, vibration-dampening structural frame for relentless daily operations.
Significantly reduces material handling bottlenecks and manual labor requirements.
Sourced directly from a globally certified industrial machinery manufacturer.
Step onto the factory floor and experience the rhythmic, powerful operation of our automated angle processing center. The heavy-duty steel frame stands as a testament to industrial resilience, actively absorbing intense vibrations to maintain microscopic precision during high-tonnage operations. When the hydraulic cylinders engage, they deliver a smooth, quiet, yet immensely powerful force, seamlessly piercing dense Q345 steel without a hint of hesitation. The tactile feedback of the machined surfaces speaks of meticulous craftsmanship, while the distinct, clean sound of the single-blade shear slicing through thick metal confirms a waste-free, flawless cut every single time.
By integrating marking, punching, and cutting into one continuous, fluid workflow, this equipment fundamentally transforms how structural components are manufactured. Facility managers will immediately notice a drastic reduction in material handling bottlenecks and a significant drop in operational noise compared to traditional, disjointed setups. The neatly cut, burr-free edges of the finished angles eliminate the tedious need for secondary grinding, drastically accelerating downstream assembly and welding processes. The low-frequency hum of the premium servo motors and the rapid, precise movements of the feeding carriage reflect a system that is always under absolute control.
This machine is far more than just a piece of iron; it is a comprehensive engineering solution designed to elevate workshop throughput, minimize human error, and deliver impeccably finished structural components. From the cool, polished touch of the linear guide rails to the intuitive, brightly lit interface of the control panel, every sensory and functional detail has been optimized to meet the strictest engineering standards and satisfy the most demanding production schedules.
Engineering excellence is at the core of this processing center. Every mechanical movement and software command is meticulously designed to maximize your facility's uptime, ensuring that your production line operates with relentless efficiency and minimal intervention.

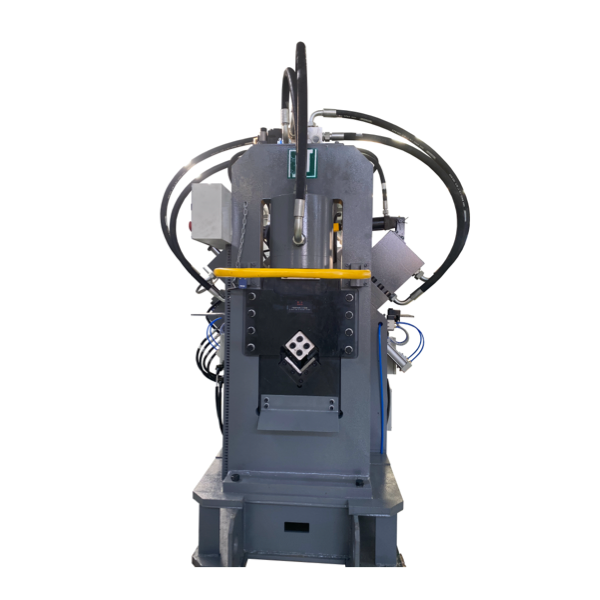

Zero-Waste Shearing Technology: The cutting unit utilizes an advanced single-blade shearing mechanism. This guarantees a perfectly neat, distortion-free cutting surface while entirely eliminating material waste, significantly optimizing your raw material yields and reducing scrap disposal costs.

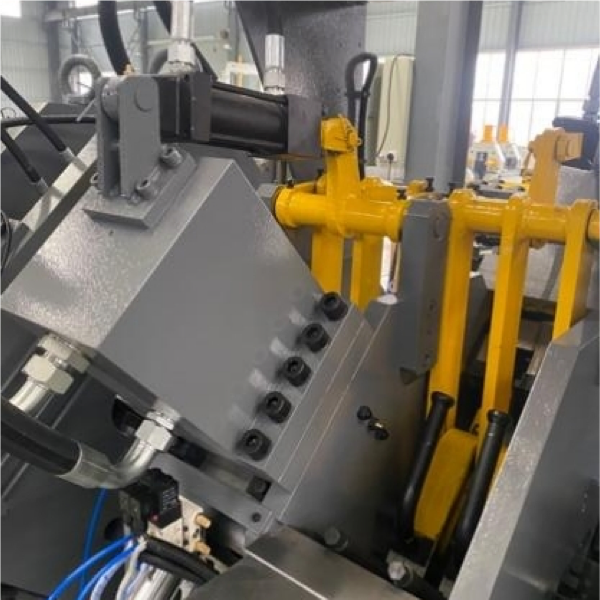

High-Rigidity Punching Unit: Equipped with multiple sets of punching dies on each side, the system allows for rapid, numerically controlled stadia changes. The hydraulic cylinder driving the support device moves with fluid precision, ensuring consistent hole quality and preventing material deformation even in the thickest Q345 angles.
Unyielding Marking Precision: The closed-rigidity marking unit features four programmable cassette sets. It stamps clear, deep, and perfectly aligned characters with a satisfying, heavy thud, ensuring lifelong traceability of structural components under harsh environmental conditions and heavy galvanization.
Flawless Material Handling: A robust transverse conveyor seamlessly feeds raw angles into the rotating conveyor. Driven by a heavy-duty reducer, it transitions the steel into the longitudinal feeding line with absolute smoothness, preventing surface scratches, eliminating metallic clashing sounds, and avoiding material jams.

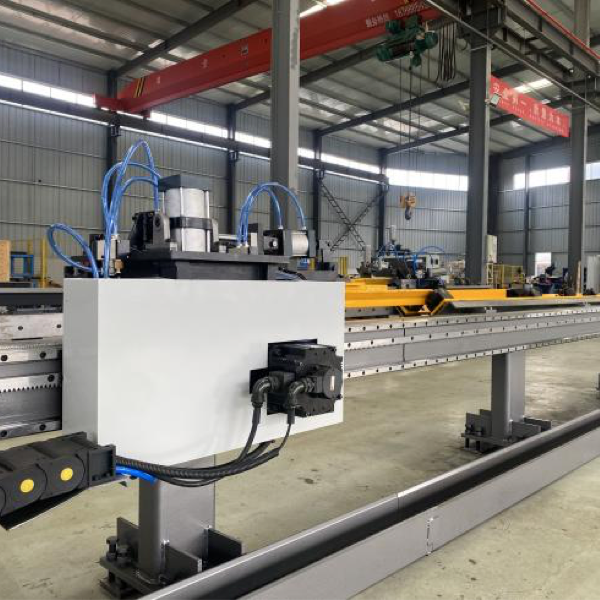

Servo-Driven CNC Carriage: The workpiece is gripped by a high-rigidity clamp arm guided by linear rails. Driven by a premium servo motor, this feeding carriage achieves microscopic positioning accuracy, ensuring every punch and cut lands exactly where engineered, eliminating costly rework.
Sourcing heavy industrial machinery requires a manufacturing partner who intimately understands the critical nature of uninterrupted production. We focus on delivering not just robust equipment, but long-term operational security, engineering excellence, and total peace of mind for your facility.
Certified Manufacturing Excellence: Our production facilities operate under strict adherence to global standards. We have successfully integrated GB/T19001-2016/ISO9001:2015 quality management, ISO14001:2015 environmental management, and ISO45001:2018 occupational health and safety systems into every step of our build process.
Premium Component Sourcing: We refuse to compromise on the internal organs of our machines. By integrating internationally recognized, top-tier brands for our servo motors, hydraulic valves, and pneumatic cylinders, we guarantee exceptional longevity and reliability, even in the most abusive, dust-filled industrial environments.
Rigorous Quality Control: Every machine is treated as a masterpiece of heavy engineering. It undergoes exhaustive, real-world load testing and laser-guided precision calibration before leaving our loading dock. You receive equipment that is fully optimized and ready to perform from day one.
Direct-from-Manufacturer Value: By dealing directly with the engineering source, you bypass unnecessary intermediaries. This streamlined approach ensures you receive factory-direct pricing alongside uncompromised build quality, plus direct communication channels to the mechanical engineers who designed your machine.
