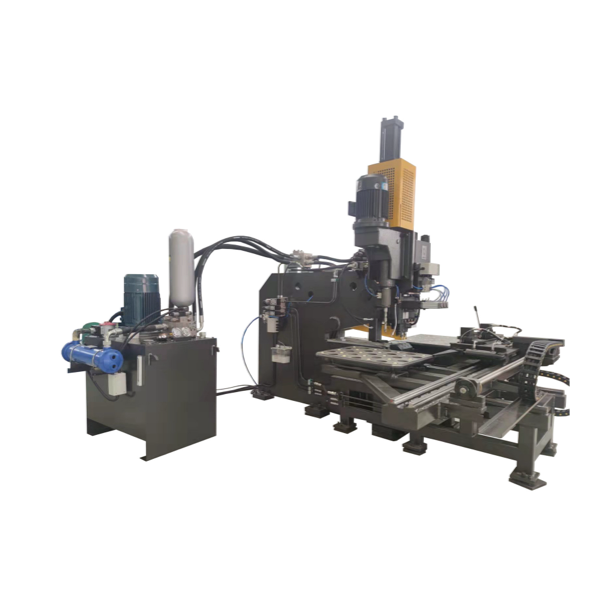

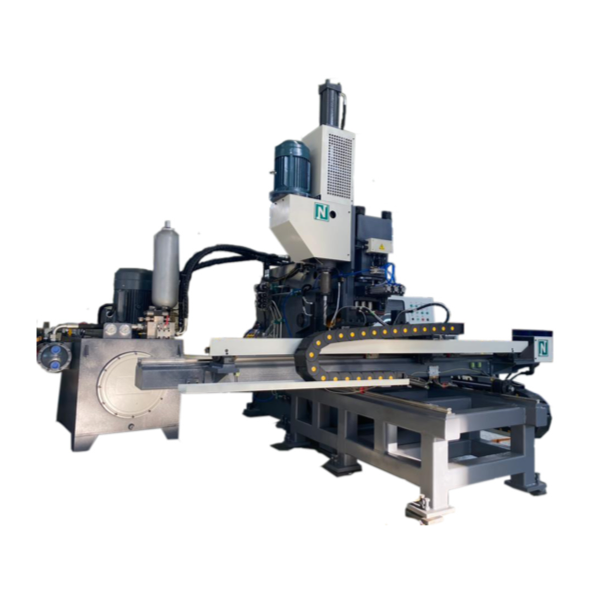

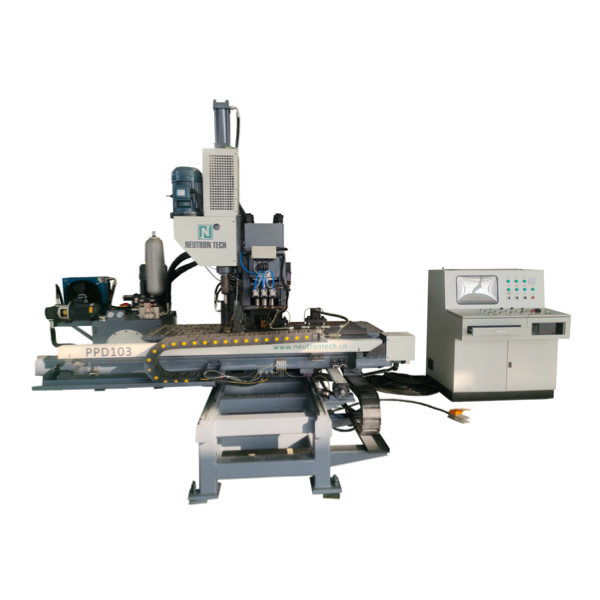

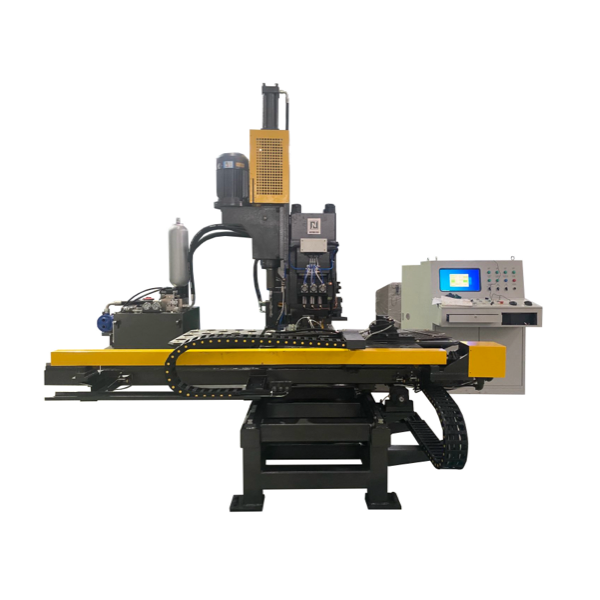

| PPD103B is a combined steel plate processing machine with multiple functions,which can drill,punch&mark.It is mainly used to process connecting plates in tower industry.The working process is numerical controlled and the operation is convenient.It can realize automatic,high-precision and mass production. | |||||||||

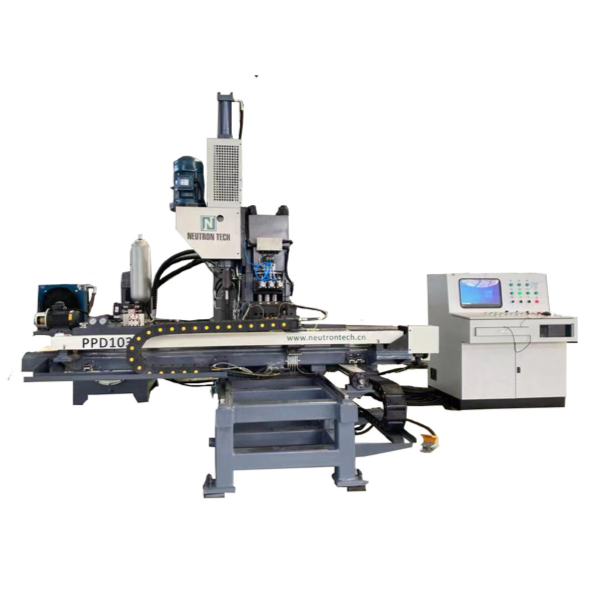

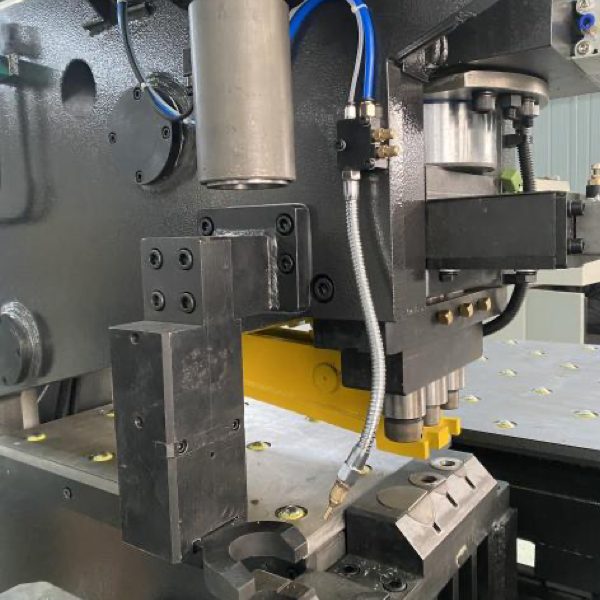

The CNC Punching Marking Drilling Machine PPD103B is a heavy-duty industrial solution engineered for processing steel plates with uncompromising precision. Sourced directly from a leading manufacturer and supplier, this equipment streamlines complex fabrication workflows for structural components.
Integrates punching, drilling, and marking into a single, highly automated processing station.
Engineered to handle large-scale steel plates up to 775×1500mm with ease.
Delivers a massive 1000kN punching force, easily penetrating thick materials.
Optimized for the rigorous demands of transmission towers, steel structures, and energy infrastructure.
Step onto the production floor, and the commanding presence of the CNC Punching Marking Drilling Machine PPD103B immediately stands out. Built with a robust, vibration-dampening steel chassis, this machine is designed to transform raw, heavy steel plates into meticulously finished components. As a thick steel plate glides effortlessly across the bed, the universal supporting balls virtually eliminate friction, allowing massive workpieces to move with a fluid, silent grace. When the machine engages, the deep, resonant thud of the 1000kN hydraulic punch and the crisp, high-speed whir of the 5.5kW drilling spindle showcase its relentless power and precision craftsmanship.
For industrial fabricators, time is the ultimate currency. This machine redefines operational efficiency by consolidating three distinct processing steps—punching, marking, and drilling—into one seamless, automated workflow. Instead of moving heavy plates between different workstations, operators can secure the material once using the formidable grip of dual hydraulic clamps. The intuitive interface translates complex engineering blueprints into executed commands in seconds, eliminating the bottleneck of manual programming. By minimizing material handling and maximizing throughput, this equipment significantly lowers labor costs and accelerates project delivery timelines, ensuring your production facility remains highly competitive in demanding sectors like infrastructure and energy.
Every tactile interaction with the PPD103B reinforces its premium build quality. From the smooth, responsive touch of the control panel to the flawless, burr-free edges of the punched holes, the attention to detail is evident. The clear, deeply embossed characters left by the 800kN marking station ensure permanent traceability for critical structural components. Whether you are outfitting a new facility or upgrading an existing fabrication line, this machine delivers the reliability, speed, and exactness required to meet the strictest industry tolerances day in and day out.
Engineered for maximum output and minimal downtime, this machine incorporates advanced mechanical and software features to elevate your fabrication capabilities.
Heavy steel plates are notoriously difficult to maneuver, often causing surface scratches and slowing down production. This machine utilizes a bed of universal supporting balls that drastically reduce friction. Operators can glide massive workpieces into position with minimal physical exertion, protecting the material's finish and accelerating the setup process.
Precision starts with stability. The equipment features two highly robust, rapidly adjustable hydraulic clamps that lock the workpiece in a vice-like grip. This ensures zero material shift during the violent impact of punching or the high-torque rotation of drilling, guaranteeing flawless hole placement every single time.
Downtime spent changing tools eats directly into profit margins. The multi-station die setup allows for three distinct punching diameters and a dedicated marking character box to be loaded simultaneously. Transitioning between punching different hole sizes and stamping identification codes happens instantly, streamlining complex multi-step fabrication runs.
You do not need a team of software engineers to operate this equipment. The human-computer interface is remarkably intuitive. By simply inputting the required processing parameters and dimensions, the upper computer software automatically generates the precise machining program. This drastically reduces the learning curve and eliminates costly manual programming errors.
Designed to meet the exacting standards of modern industrial production, the PPD103B excels across multiple dimensions of performance, reliability, and application versatility.
By integrating punching, drilling, and marking into a single, cohesive unit, this machine eliminates the need to transfer heavy plates between separate workstations. The multi-die station design supports rapid tool changes, while the frictionless universal ball bed ensures that even the largest, thickest plates are processed with unprecedented speed and fluidity.
When constructing critical infrastructure, there is no margin for error. Driven by high-end servo motors and precision ball screws, and secured by rigid hydraulic clamps, the machine maintains a longitudinal and transverse precision of ±0.5mm. This exactness easily satisfies the rigorous first-rate product stipulations required for high-voltage transmission towers and structural node plates.
Industrial environments are unforgiving, which is why this machine is built with globally recognized, premium-brand components. From the sophisticated PLC and AC servo motors to the heavy-duty hydraulic valves and pneumatic cylinders, every critical part is selected for its proven durability. This commitment to quality drastically lowers the failure rate and ensures continuous, stable operation during peak production cycles.
Advanced manufacturing should not require overly complex operation. The integrated upper computer software features a highly visual, user-friendly interface. Operators only need to input basic processing requirements, and the system autonomously generates the execution program. This intelligent automation lowers the barrier to entry for operators and ensures consistent output regardless of user experience.
This equipment is a highly adaptable asset for diverse manufacturing sectors. It is perfectly suited for standardizing the production of connection plates and flanges in electric power infrastructure, communication towers, and large-scale steel building structures. Furthermore, its flexible batch-processing capabilities make it ideal for automotive chassis manufacturing and the fabrication of heavy components for wind, hydro, and nuclear energy equipment.
Procuring heavy machinery is a long-term investment, supported by a comprehensive service safety net. Users benefit from 24/7 multi-channel online support, access to localized international service engineers, and permanent technical backing. From initial installation and hands-on operator training to long-term maintenance, every aspect of your operational success is guaranteed.
Trust is built on verifiable standards. The production of this machine adheres to the strictest global quality control protocols, proudly holding certifications for ISO9001 (Quality Management), ISO14001 (Environmental Management), and ISO45001 (Occupational Health and Safety). This reflects a deep-rooted commitment to manufacturing excellence and sustainable, safe production practices.
Selecting the right equipment supplier is just as critical as the machinery itself. We provide an ecosystem of reliability, quality, and continuous support designed to keep your operations running smoothly.
Direct Manufacturer Advantage: By sourcing directly from a premier manufacturer, you receive uncompromised build quality, transparent communication, and highly competitive pricing without intermediary markups.
Stringent Quality Control: Every machine undergoes rigorous testing and calibration before leaving the facility, ensuring it meets our exacting ISO-certified standards for performance and safety.
Global Service Network: With international service engineers available for on-site support and a dedicated online team ready 24/7, geographical boundaries will never delay your production schedule.
Comprehensive Warranty: We stand behind our engineering with a robust 12-month warranty covering parts and labor after successful commissioning, alongside a lifetime commitment to technical assistance and spare parts availability.
Turnkey Installation & Training: Our experts do not just deliver a machine; they integrate it into your workflow. We provide complete installation, rigorous testing, and thorough operator training to ensure you achieve maximum return on investment from day one.
