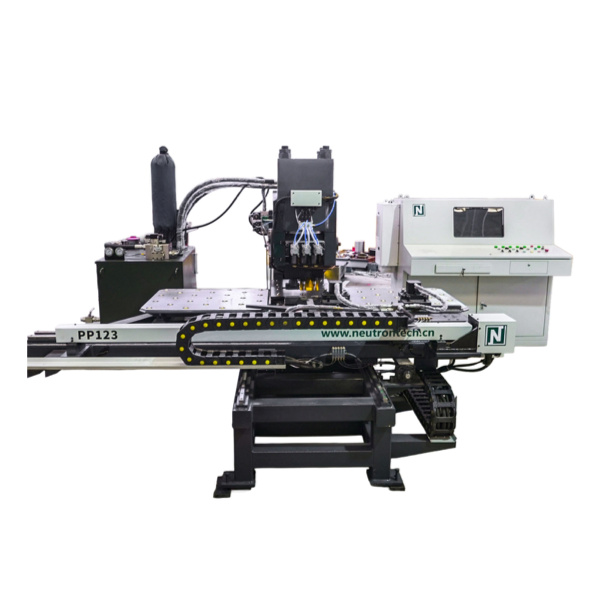

CNC Punching & Marking Machine PP123 for Steel Plates

Key Features & Highlights

Elevate your steel fabrication capabilities with a system engineered for uncompromising precision and relentless endurance. Our equipment is meticulously crafted to solve the most demanding challenges in heavy metal processing, reducing labor costs while simultaneously boosting output quality.

• Seamlessly transitions between deep-hole punching and character marking without manual intervention.

• Dramatically reduces material handling time with advanced, easily adjustable hydraulic clamping.

• Ensures permanent, highly legible character impressions to meet strict industry traceability mandates.

• Adapts rapidly to varying plate thicknesses and hole diameters with an optimized die-station layout.

Core Processing Capability & Specifications

When dealing with heavy structural components, raw power and versatility are non-negotiable. This machine is built to conquer the toughest materials your facility handles daily, ensuring smooth operations even under peak production loads.

• Massive Force Generation: Harness 1200kN of punching power and 1000kN of marking force to effortlessly process heavy-duty structural steel without straining the mechanical frame.

• Expansive Working Envelope: Accommodates substantial workpieces up to 775 × 1500mm, providing ample space for large-scale connection plates and heavy flanges.

• Broad Thickness Compatibility: Flawlessly punches through solid steel plates ranging from 5mm to 25mm in thickness, accommodating both Q235 and Q420 material grades.

• All-in-One Efficiency: Consolidates hole punching and deep, clear character marking into a single continuous operation, entirely eliminating secondary processing stages.

Core Components & Equipment Reliability

Downtime is the enemy of profitability. That is why every critical moving part and control system within this unit is sourced from globally recognized brands, ensuring a long, maintenance-friendly lifecycle and minimizing unexpected mechanical failures.

• Premium Valve Systems: Equipped with top-tier hydraulic and pneumatic valves (including electromagnetic, overflow, and unloading valves) for fluid, highly responsive control.

• Precision Transmission: Utilizes high-grade ball screws that translate rotational motion into flawless linear movement with virtually zero backlash.

• Intelligent Brainpower: Driven by an advanced PLC and CNC orientation system, alongside non-touching switches and encoders, guaranteeing exact positioning day in and day out.

• Heavy-Duty Servo Motors: World-famous AC servo motors on the X and Y axes provide the relentless torque required for rapid, accurate workpiece positioning.

Automation & Ease of Operation

Complex machinery should not require a steep learning curve. We have engineered the user experience to be as intuitive as possible, allowing your operators to achieve peak productivity from the very first day of installation.

• Intuitive Human-Computer Interface: The upper computer software features a crystal-clear visual dashboard. Operators simply input the dimensional requirements, and the system automatically generates the optimal processing program.

• Frictionless Material Handling: The worktable is embedded with heavy-duty universal supporting balls, allowing operators to glide massive steel plates into position with minimal physical exertion.

• Rapid Hydraulic Clamping: Two incredibly strong, precision-engineered hydraulic clamps secure the material instantly. Their distance can be freely adjusted to accommodate varying plate geometries.

• Quick-Change Tooling: The three die-stations are designed for rapid punch replacement, keeping changeover times to an absolute minimum and maintaining high throughput.

Precision Machining & Industry Compliance

In sectors where structural failure is not an option, exact tolerances are paramount. This equipment is calibrated to meet and exceed the most stringent industry standards, giving your procurement and quality assurance teams total peace of mind.

• Micrometer-Level Accuracy: Achieves a longitudinal and transverse hole spacing precision of ±0.5mm on joint plates, ensuring seamless assembly on the construction site.

• Node Plate Perfection: Maintains a strict ±1.0mm tolerance for the space between any two group holes, as well as the distance from the hole to the plate edge.

• Flawless Verticality: Ensures the vertical degree remains strictly ≤ 0.03t (where 't' is plate thickness) and ≤ 2mm, preventing bolt misalignment.

• Certified Standards: Fully complies with the rigorous stipulations required for first-rate products in "The Classifying Standard of Steel Tower of the Transmit Electricity Line".

Adaptability is the cornerstone of modern manufacturing. This equipment is specifically tailored to empower a wide array of demanding industrial sectors, supporting flexible, small-batch, multi-variety production schedules.

• Electric Power Industry: Perfectly suited for processing connection plates on transmission towers, substation frameworks, and crucial power fittings, ensuring strict traceability.

• Communication Infrastructure: Delivers standardized punching and lettering for communication towers and base station brackets, drastically speeding up field assembly and construction efficiency.

• Steel Structure Engineering: Essential for fabricating building frameworks, bridges, and factory structural sections, including flanges and heavy connection plates.

• Automotive Manufacturing: Highly adept at processing medium-to-small metal sheets for robust body structure parts and heavy-duty chassis components.

• Renewable & Traditional Energy: Capable of handling large structural components for wind power tower cylinders, foundation rings, and hydropower rotor brackets.

The operation guide includes mechanical,electric and hydraulic parts.We provide detailed guide and manual together with the machine.After installation,our engineer will also provide training to the operator after successful installation and commissioning.
